Description

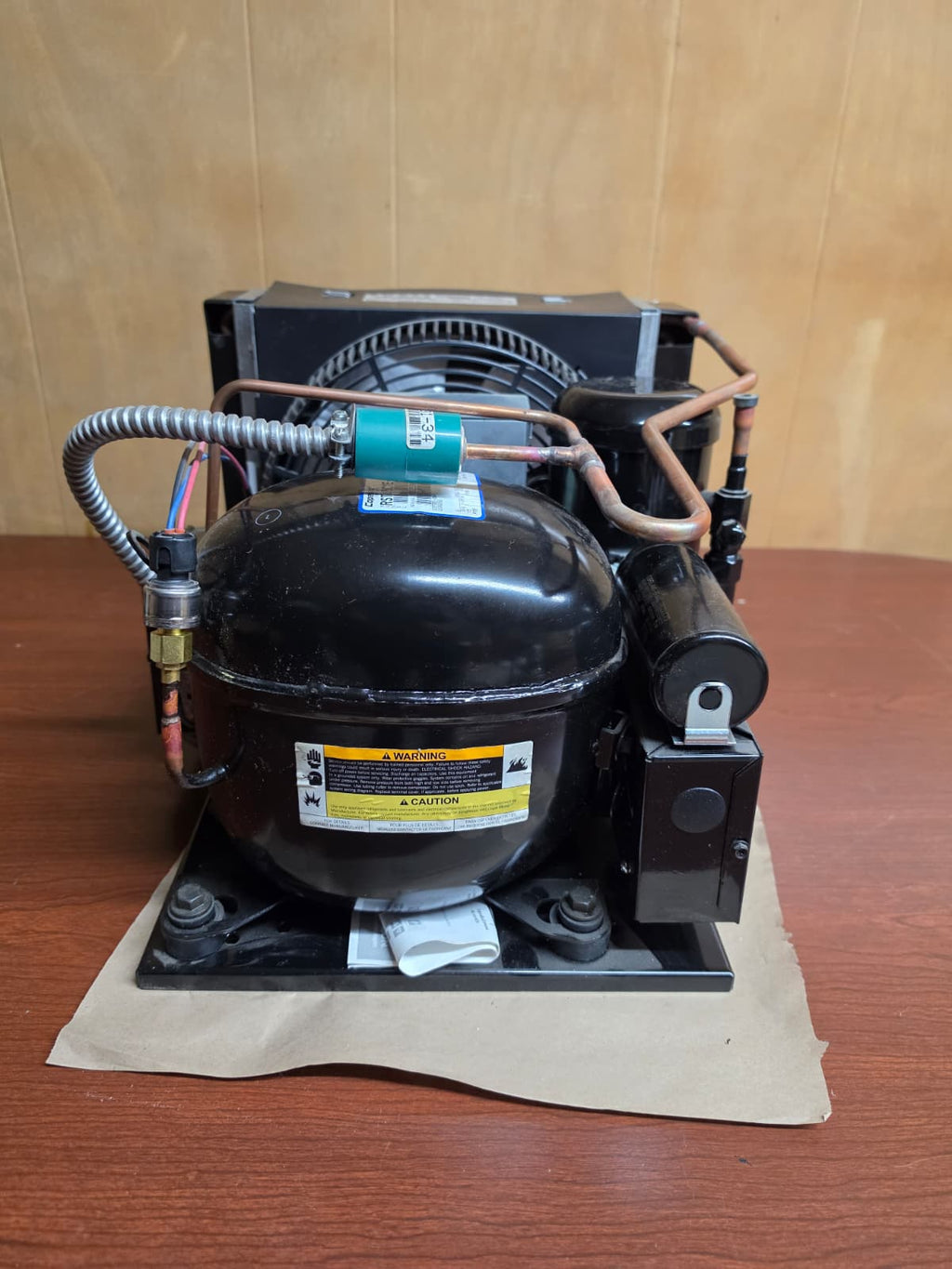

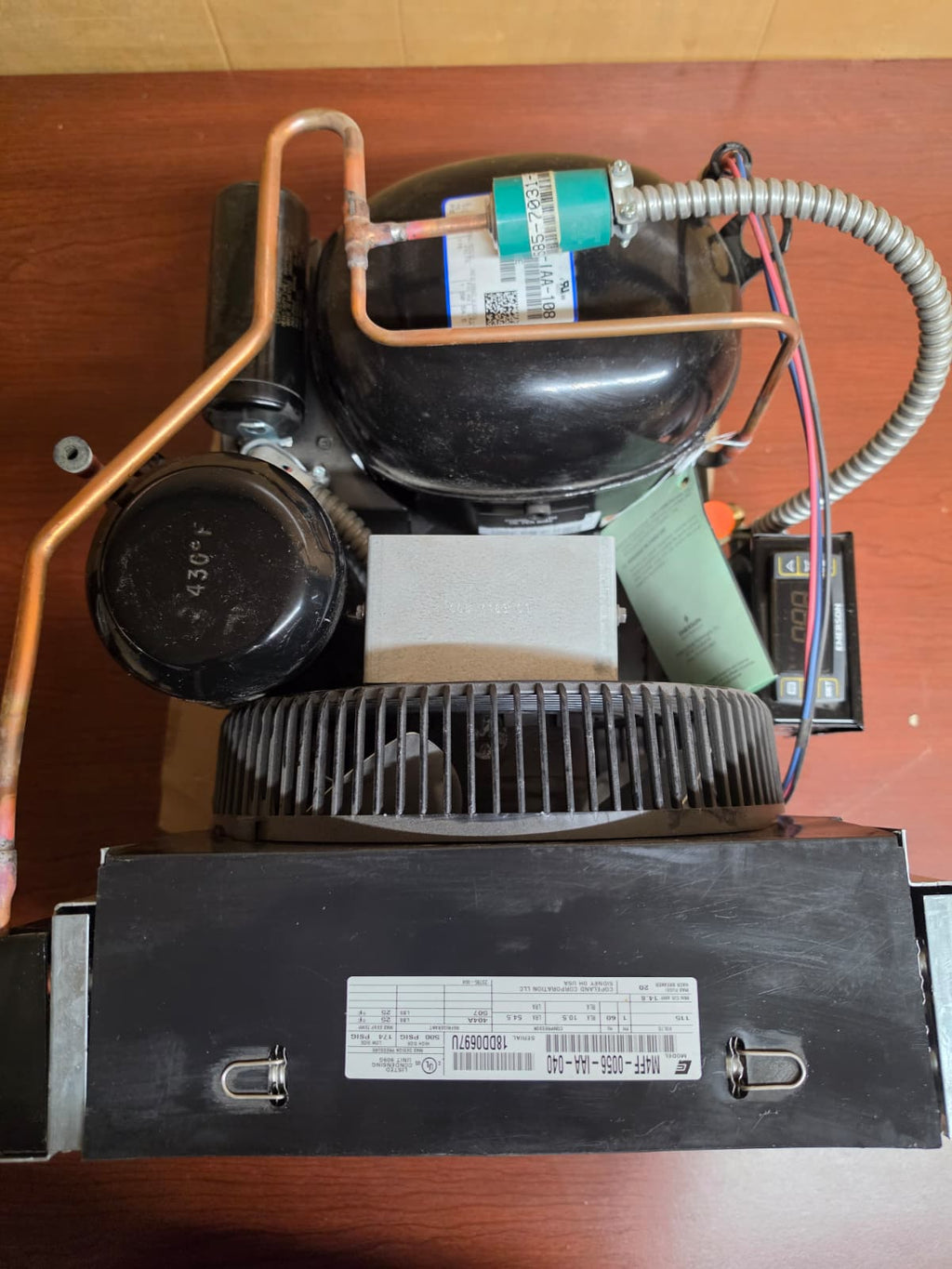

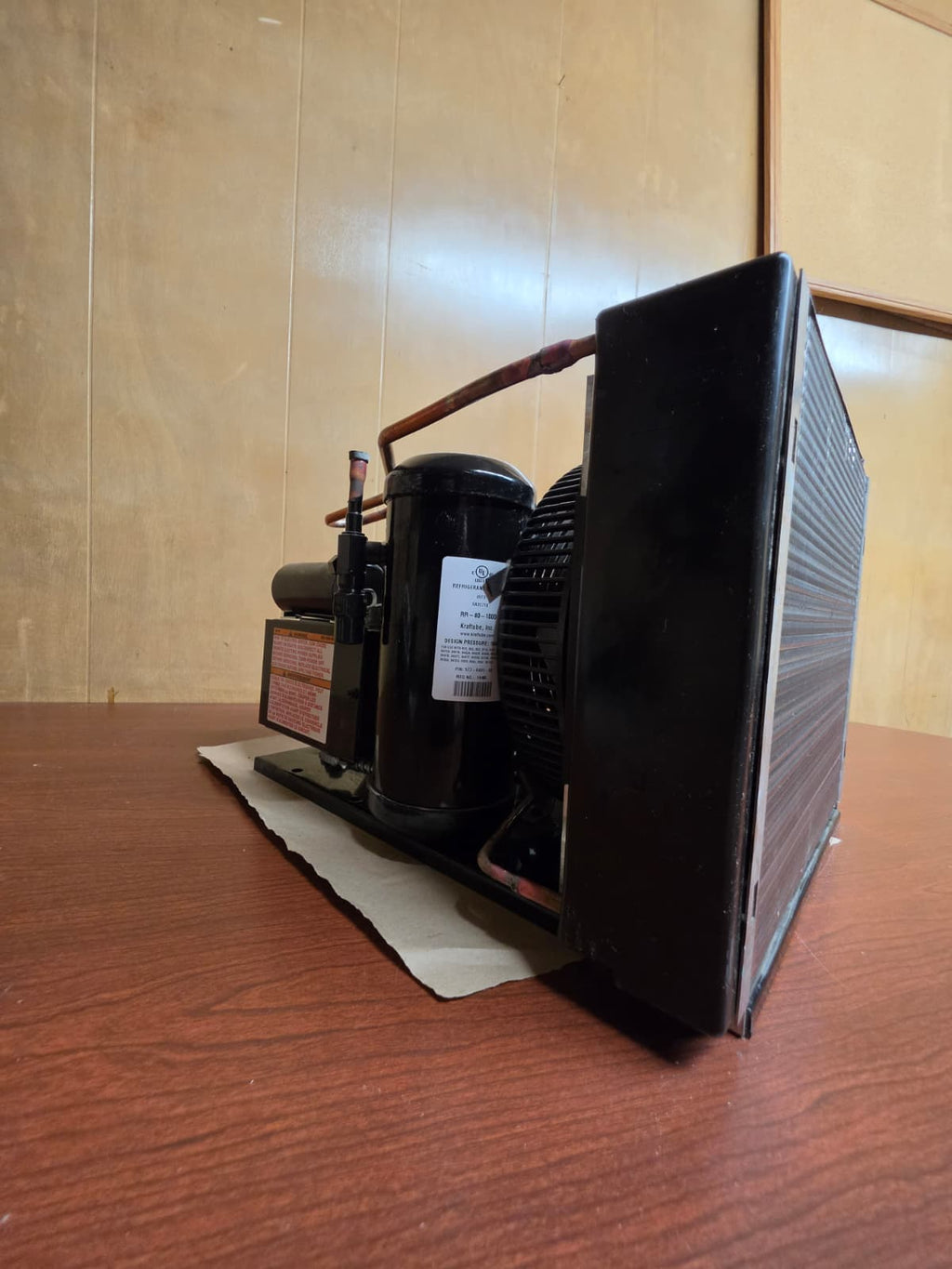

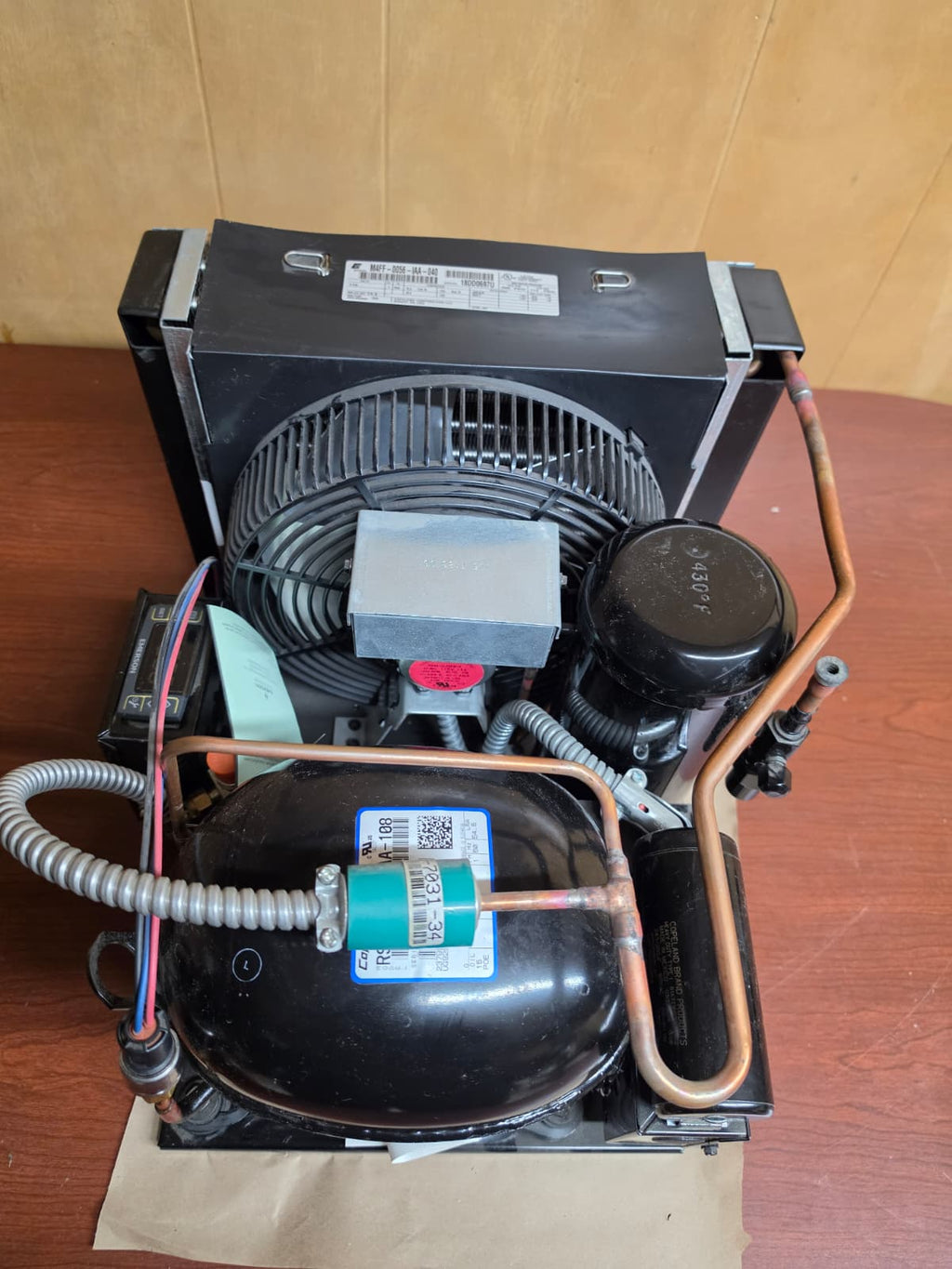

Copeland (Emerson) M-Line M4FF-0056-IAA-040 air-cooled condensing unit: new, unused OEM stock built for Norlake (item 144827). It is a complete, factory-assembled package with a Copeland hermetic compressor, condenser coil and fan, receiver, service valve, pressure control, an Emerson digital controller and a run capacitor, all mounted on a steel base. It runs on standard 115 V single-phase power with R-404A or R-507 refrigerant.
Key Features
- Copeland hermetic compressor with POE oil, factory-mounted on isolators.
- 115 V / 1 phase / 60 Hz: no 208/230 V circuit needed.
- R-404A or R-507 refrigerant.
- Emerson digital temperature controller already mounted and wired.
- Pressure control in a flexible conduit, plus a receiver and a service valve.

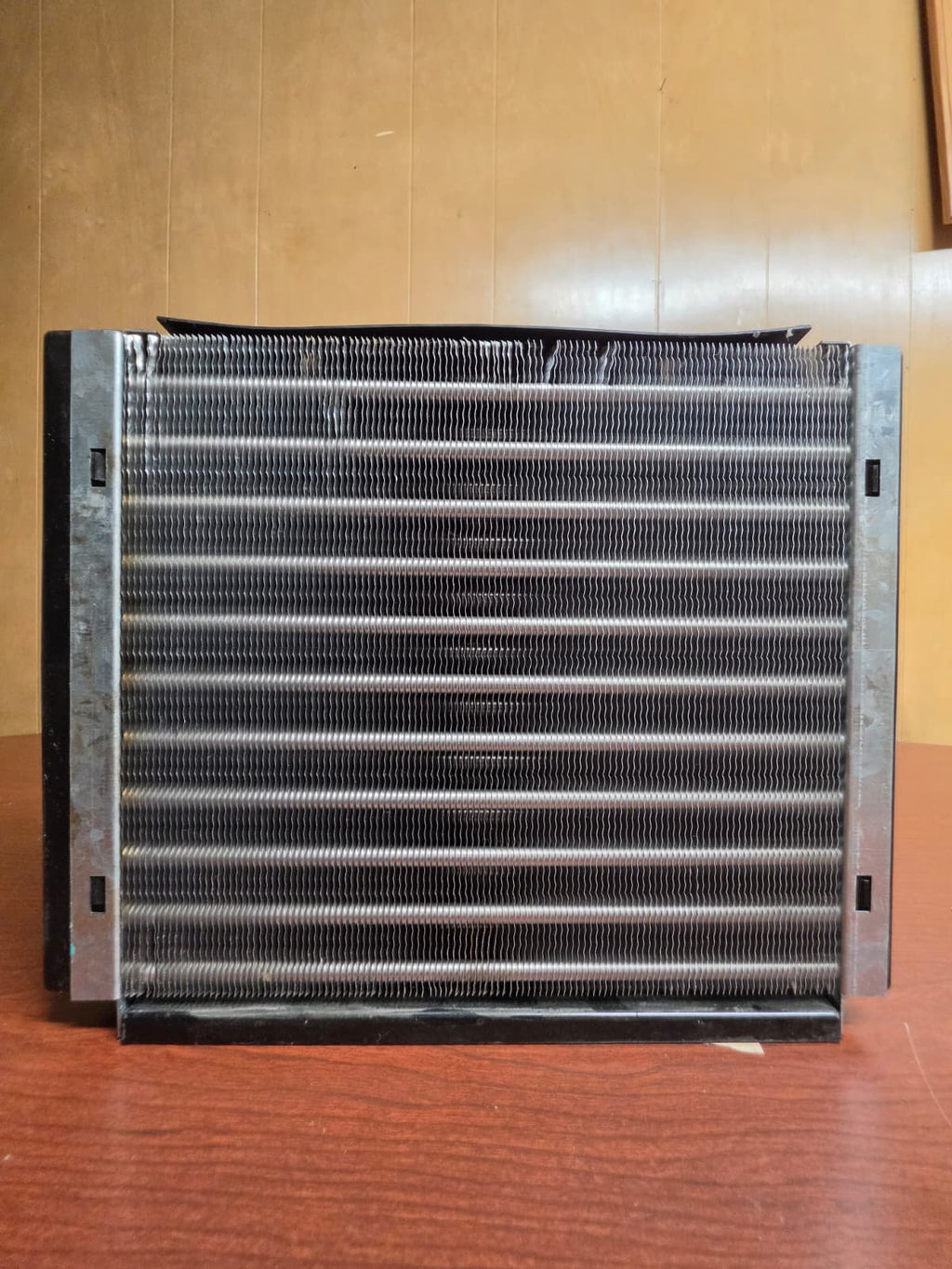

- Air-cooled condenser with a copper-tube aluminum-fin coil, condenser fan motor and guard.
- UL Listed condensing unit (909G), built by Copeland in Sidney, Ohio.

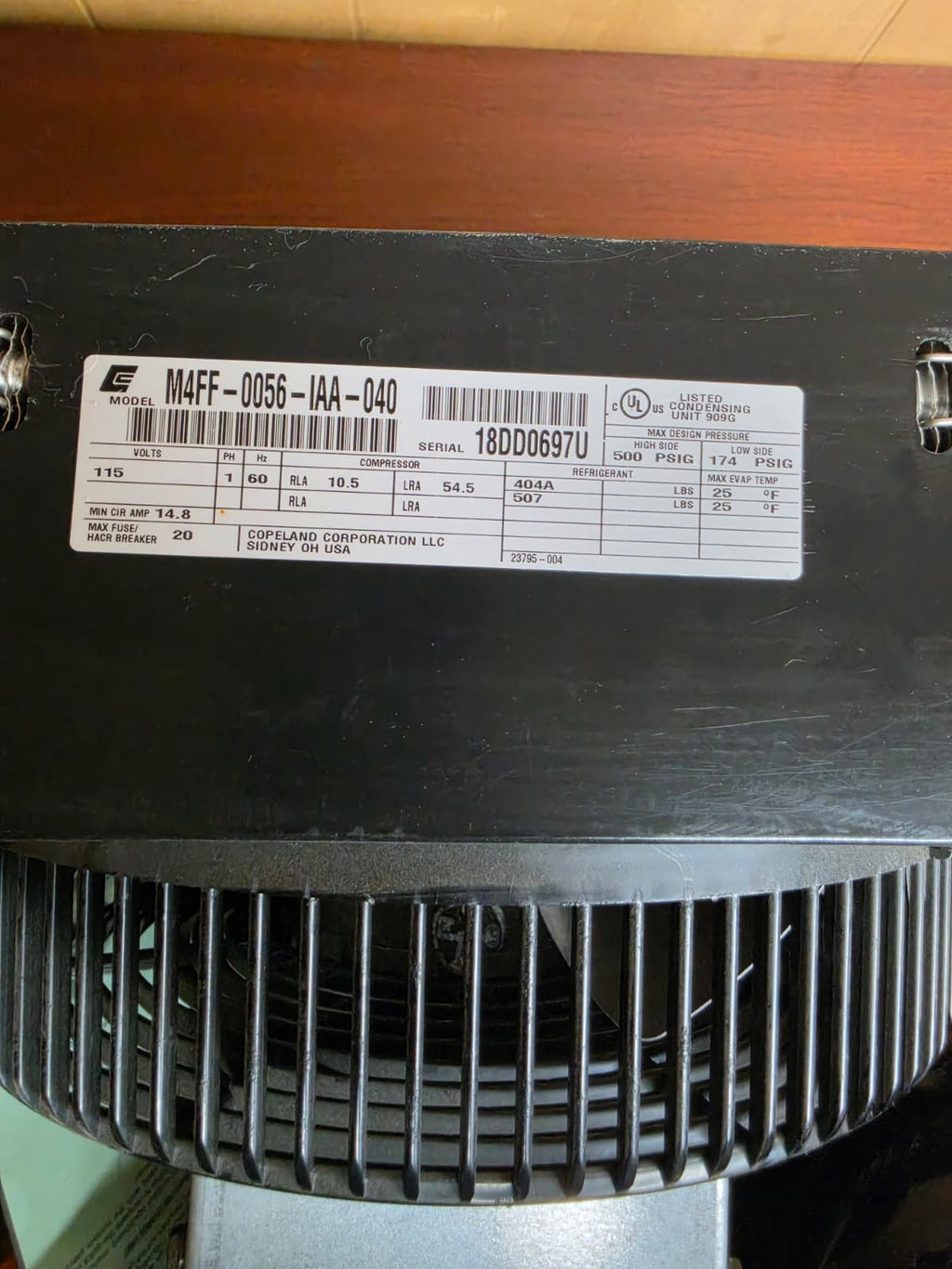

Specifications (from the nameplate)
| Manufacturer | Copeland / Emerson Climate Technologies |
| Model | M4FF-0056-IAA-040 |
| OEM Cross-Reference | Norlake item 144827 |
| Electrical | 115 V / 1 Ph / 60 Hz |
| Compressor RLA / LRA | 10.5 A / 54.5 A |
| Min. Circuit Ampacity | 14.8 A |
| Max Fuse / HACR Breaker | 20 A |
| Refrigerant | R-404A / R-507 |
| Max Evaporator Temp | 25 °F |
| Max Design Pressure | 500 PSIG high side / 174 PSIG low side |
| Oil | POE |
| Condenser | Air-cooled, single fan |
| Agency | UL Listed (909G) |
| Condition | New, unused. Pulled from original Emerson packaging (box label shown in the photos) |
Typical Applications
- Replacement condensing unit for Norlake equipment that uses item 144827
- Walk-in coolers, reach-ins and display cases on R-404A/R-507
Only 1 available. Questions? Contact sales@eltcustomcoolers.com.
Installation, brazing and charging must be done by an EPA-certified refrigeration technician. The unit does not ship charged with refrigerant. Check the model compatibility with your equipment's serial plate before you order.
