Description

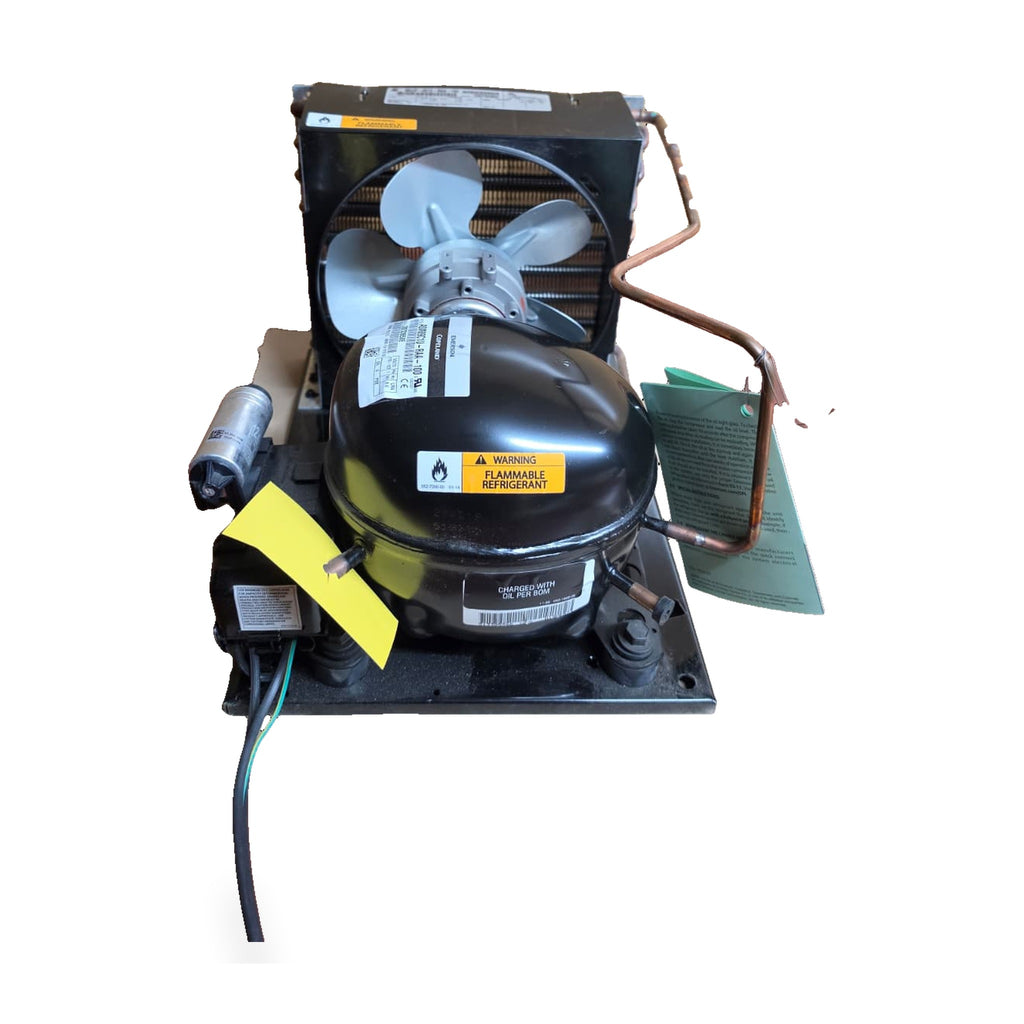

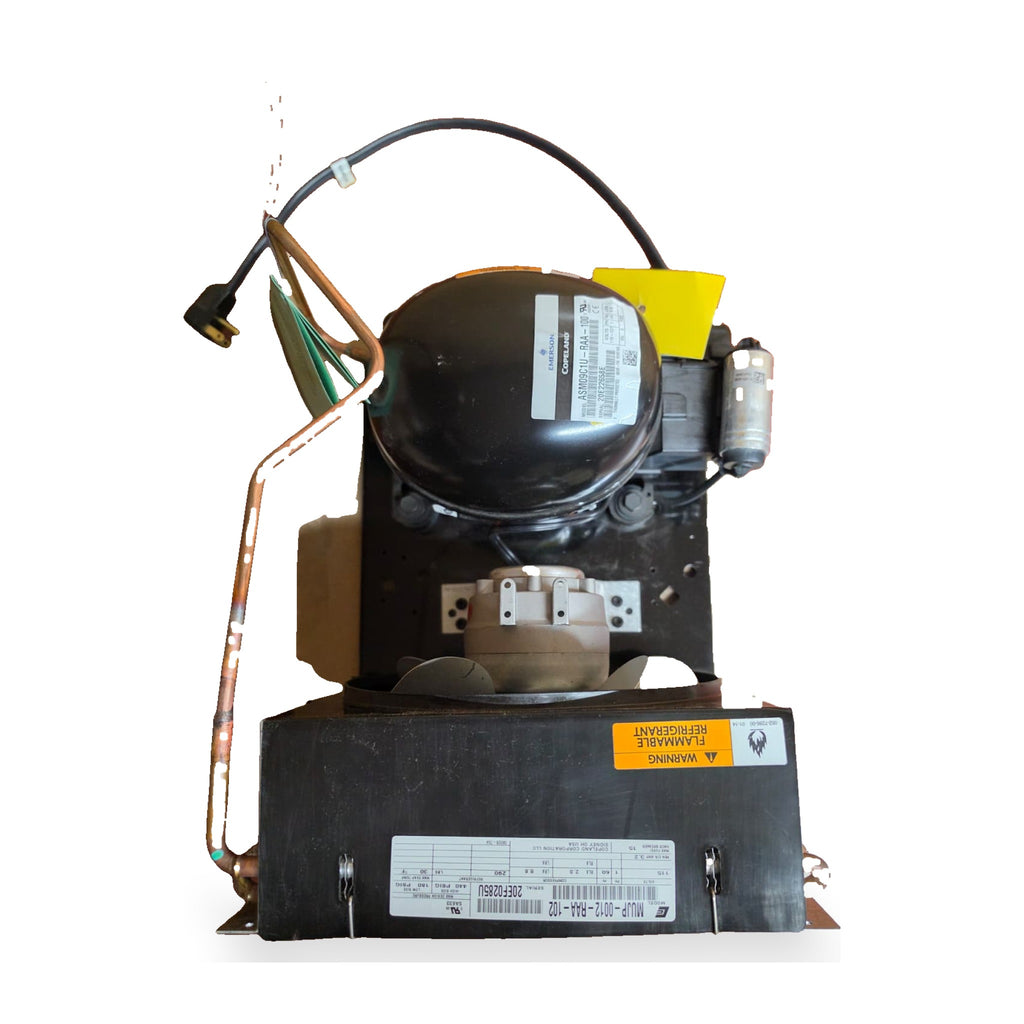

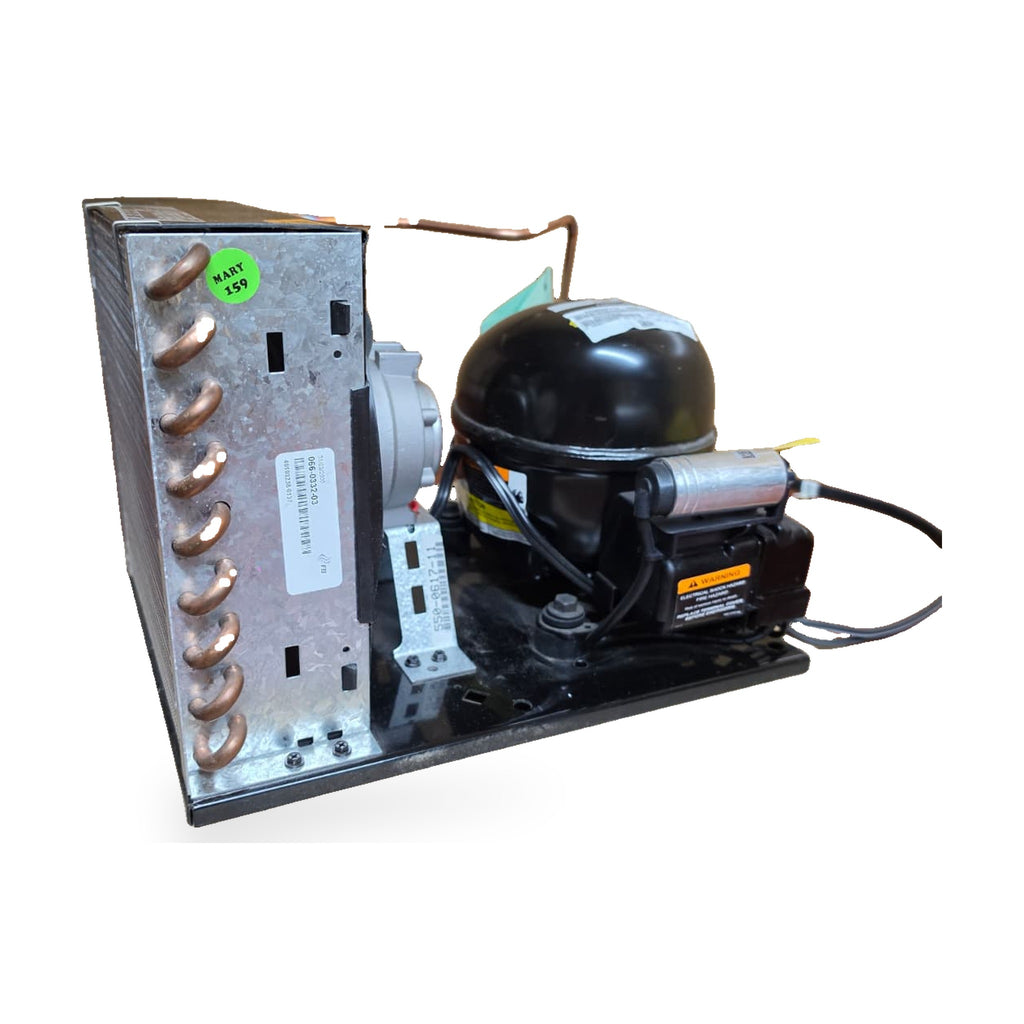

Genuine Copeland (Emerson) M-Line MUJP-0012-RAA-102 air-cooled condensing unit for R-290 (propane) refrigerant: brand-new, factory-packed OEM stock. It is the OEM condensing unit for Norlake and Master-Bilt part 162196 / MB162196, which the OEM parts channel sells for over $1,000. It comes ready to mount, with the compressor, condenser coil, fan motor, start components and a factory power cord already installed.
Key Features
- Copeland ASM09C1U-RAA-100 hermetic compressor: 1/4 HP, built for medium-temperature R-290 service.
- Natural refrigerant (R-290): low GWP and highly efficient. Meets EPA SNAP and UL rules for small-charge propane systems.
- 115V single-phase, low draw: 2.0 RLA, with a minimum circuit ampacity of 3.2 A.

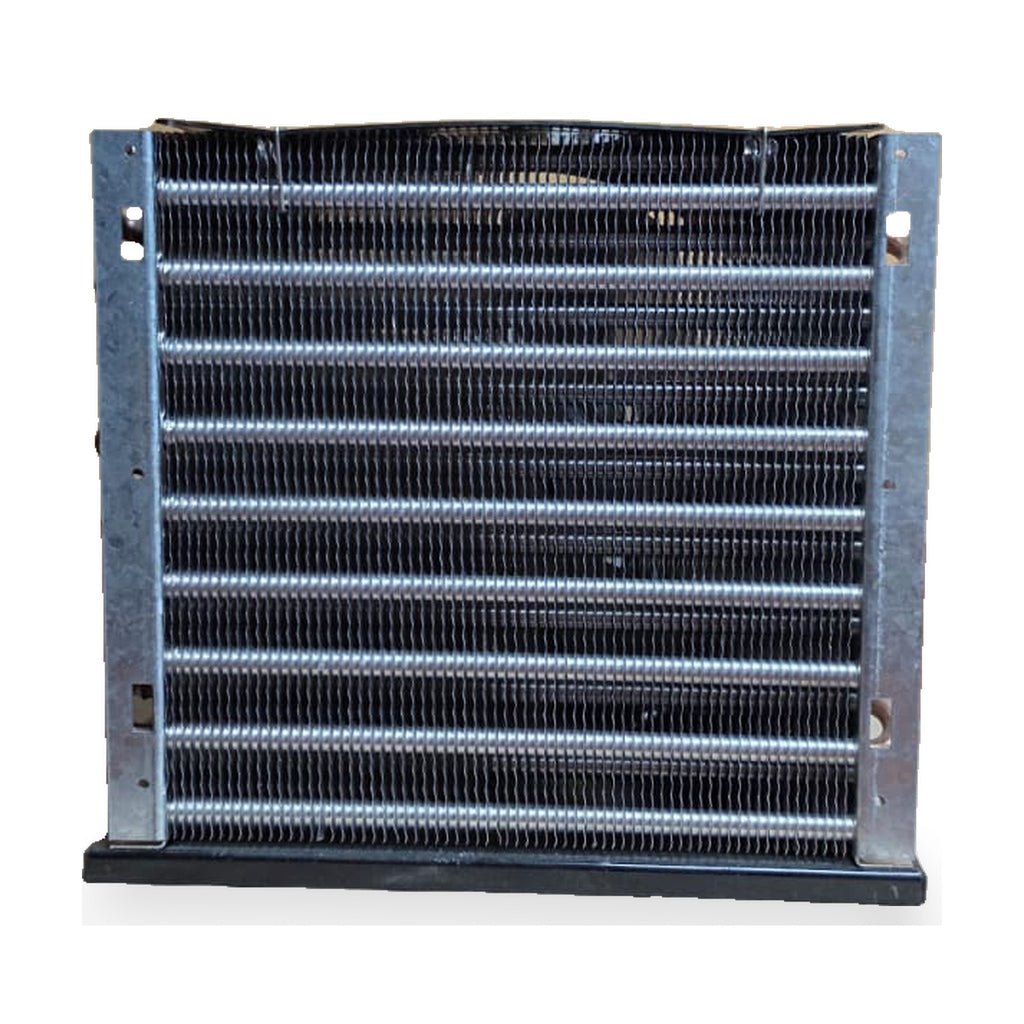

- Complete package: copper-tube aluminum-fin condenser coil with an integrated fan shroud, condenser fan motor and blade, run capacitor and electrical box.
- Plug-in ready: factory 3-prong 115V power cord.
- Compact steel base with isolator-mounted compressor feet.
- Factory oil charge: POE oil. The installation and specification tag is still attached.
- UL Listed, built by Copeland in Sidney, Ohio.
Specifications (from the nameplate)
| Manufacturer | Copeland / Emerson Climate Technologies |
| Model | MUJP-0012-RAA-102 |
| OEM Cross-Reference | Norlake 162196 / Master-Bilt MB162196 |
| Compressor | Copeland ASM09C1U-RAA-100 hermetic reciprocating |
| Horsepower | 1/4 HP |
| Application | Medium temperature (coolers, reach-ins, display cases) |
| Refrigerant | R-290 (propane) |
| Oil | POE |
| Electrical | 115V / 1 Ph / 60 Hz |
| Compressor RLA / LRA | 2.0 A / 8.8 A |
| Min. Circuit Ampacity | 3.2 A |
| Max Fuse / Breaker | 15 A |
| Design Pressure | 440 PSIG high side / 180 PSIG low side |
| Condenser | Air-cooled, copper tube / aluminum fin, single fan |
| Agency | UL Listed |
| Condition | New, unused, in original Emerson factory packaging |
Typical Applications
- Replacement condensing unit for Norlake and Master-Bilt equipment using part 162196 / MB162196
- Reach-in refrigerators, merchandisers and display cases
- Small medium-temperature R-290 systems
Bulk & Wholesale
These are in stock and ship fast. The OEM part is listed as obsolete and backordered at major parts distributors. Volume pricing is available for service companies, contractors and OEMs. Contact sales@eltcustomcoolers.com for a quote.
Important: R-290 is a flammable refrigerant (A3). Installation, brazing and charging must be done only by a technician certified for hydrocarbon refrigerants, following the manufacturer's instructions and the charge-limit and safety codes that apply. The unit does not ship charged with refrigerant. Check the model compatibility with your equipment's serial plate before you order.
