Description

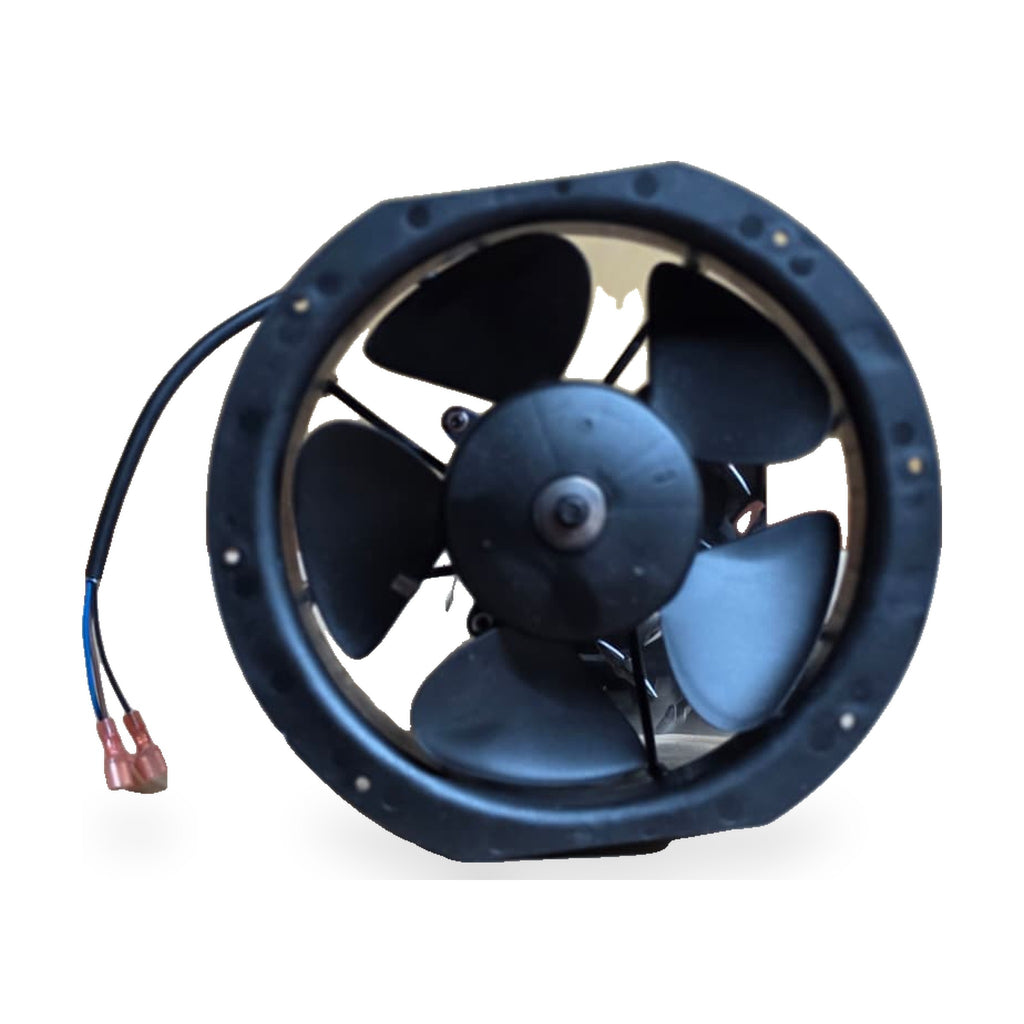

Genuine Delta Electronics AFL22AUHW-EJ5 EC axial fan: brand-new, factory-boxed surplus. This is an energy-efficient electronically commutated (EC) fan with a universal 100–240 VAC input. It is built for continuous duty in refrigeration, HVAC and enclosure cooling. The sealed IP56 motor resists dust and water spray, and the ball-bearing design gives it a long service life.
Key Features
- Universal input: 100–240 VAC, 50/60 Hz. One fan works on 115 V or 230 V systems.
- Two speeds: 2200 RPM high and 1850 RPM low.
- Low power draw: 13 W on high and 9 W on low. EC motor technology uses far less energy than shaded-pole fan motors.
- IP56 sealed motor: protected against dust and powerful water jets, suitable for humid and washdown-adjacent environments.
- Ball bearing: rated for continuous operation and long service life.
- Built-in protection: electronic commutation with locked-rotor protection.

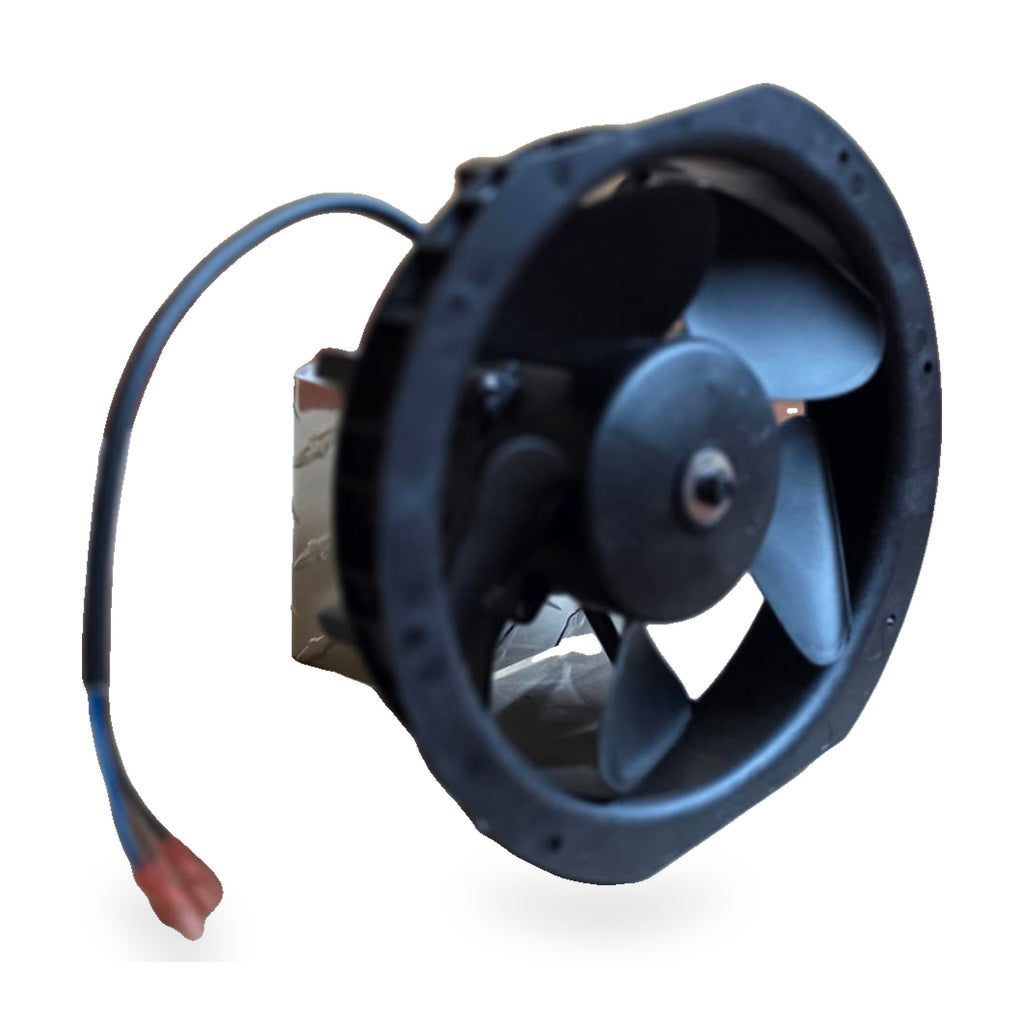

- Pre-terminated leads: 3-wire jacketed cable with insulated 1/4" female quick-disconnect terminals for fast installation.

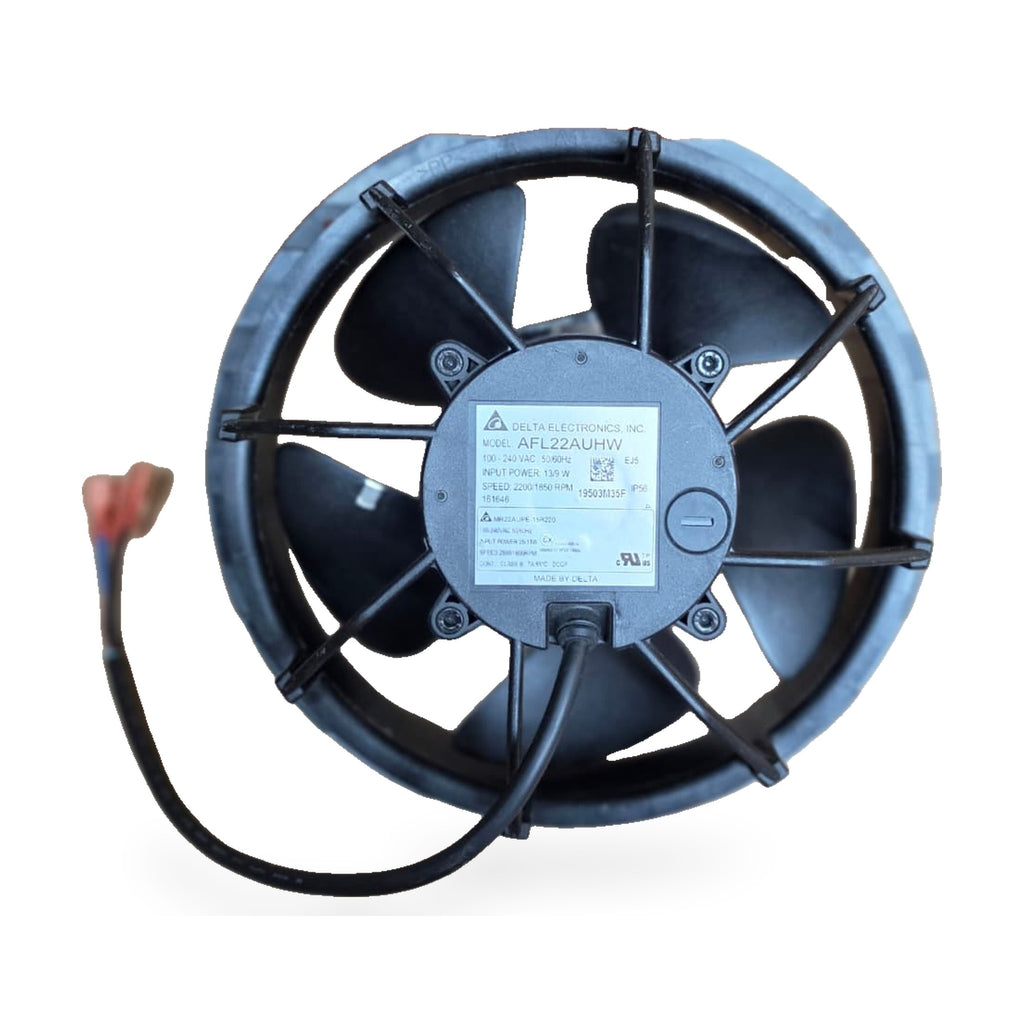

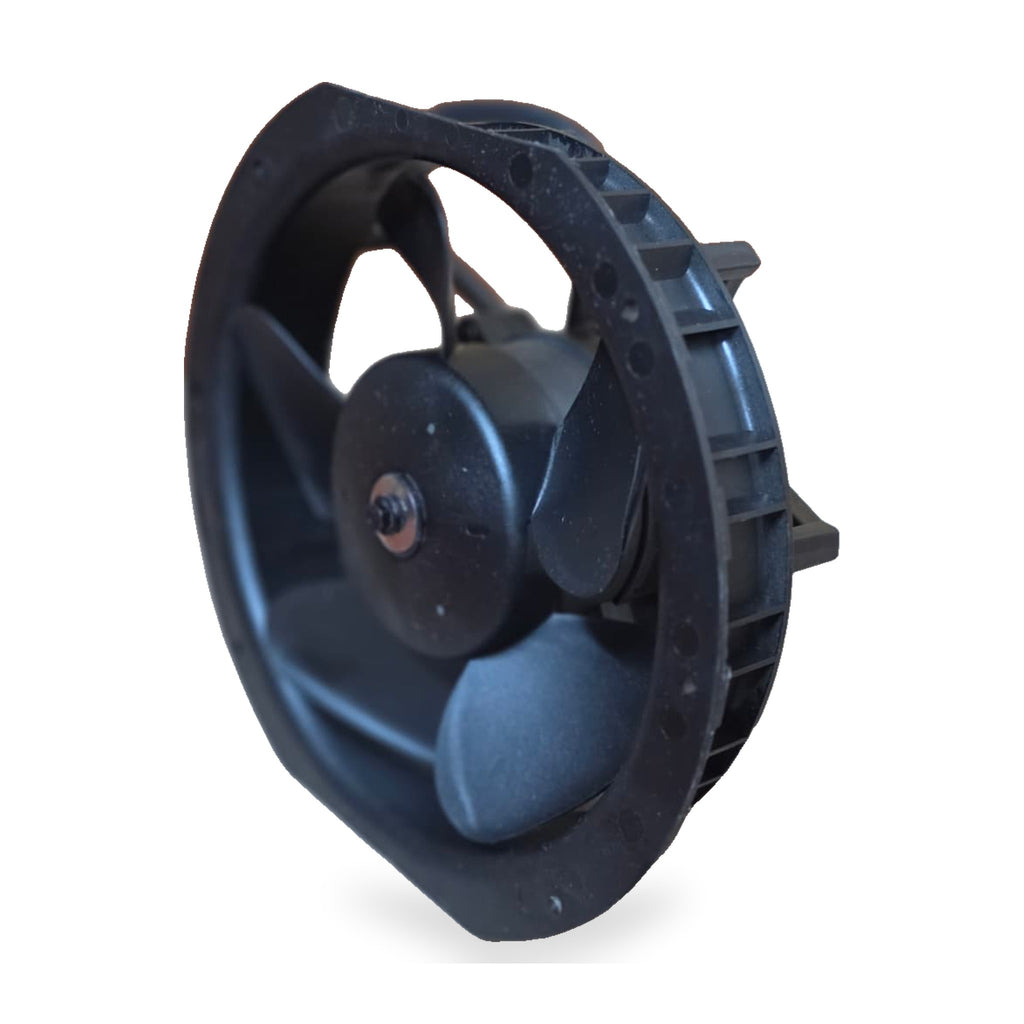

- Finger guard on the motor side, plus a molded flange frame with mounting holes.
- UL Recognized (cURus), Class B insulation, rated for continuous duty (CONT.).

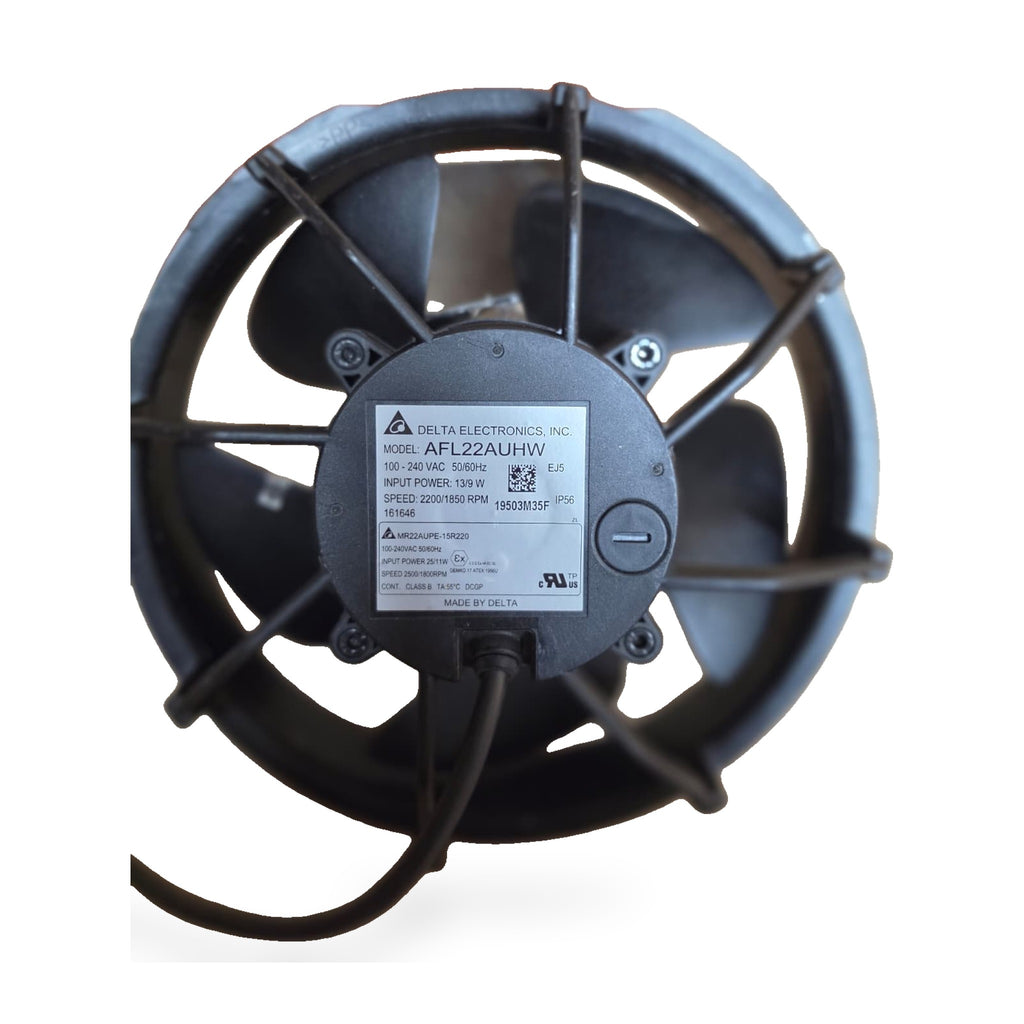

Specifications (from the nameplate)
| Manufacturer | Delta Electronics, Inc. |
| Model | AFL22AUHW (suffix EJ5) |
| Motor Model | MR22AUPE-15R220 |
| Fan Type | EC axial (tubeaxial), 5-blade impeller |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Input Power | 13 W (high) / 9 W (low) |
| Speed | 2200 / 1850 RPM |
| Ingress Protection | IP56 |
| Insulation Class | Class B |
| Max Ambient Temp | 55 °C (131 °F) |
| Bearing | Ball |
| Nominal Size | 22 cm class (approx. 222 mm / 8.7 in impeller housing) |
| Leads | 3-wire cable with 1/4" insulated female quick-disconnects |
| Agency | cURus (UL Recognized) |
| Condition | New, never used. Original Delta factory cartons (date code 19502M35F) |
Typical Applications
- Walk-in cooler and freezer evaporator fans
- Reach-in and display case condenser and evaporator fans
- HVAC, air handlers and ventilation
- Electrical enclosure, cabinet and telecom cooling
- Industrial equipment and OEM replacement
Bulk & Wholesale
We have large quantities in stock (packed 8 pcs per master carton) and they ship fast. Distributor lead times on this Delta series often run 30+ weeks. Volume and full-pallet pricing is available for contractors, service companies and OEMs. Contact us at sales@eltcustomcoolers.com for a quote.
Please check the dimensions, mounting pattern and wiring against your equipment before you order. Specifications come from the manufacturer's nameplate. Installation should be done by a qualified technician.
