Description

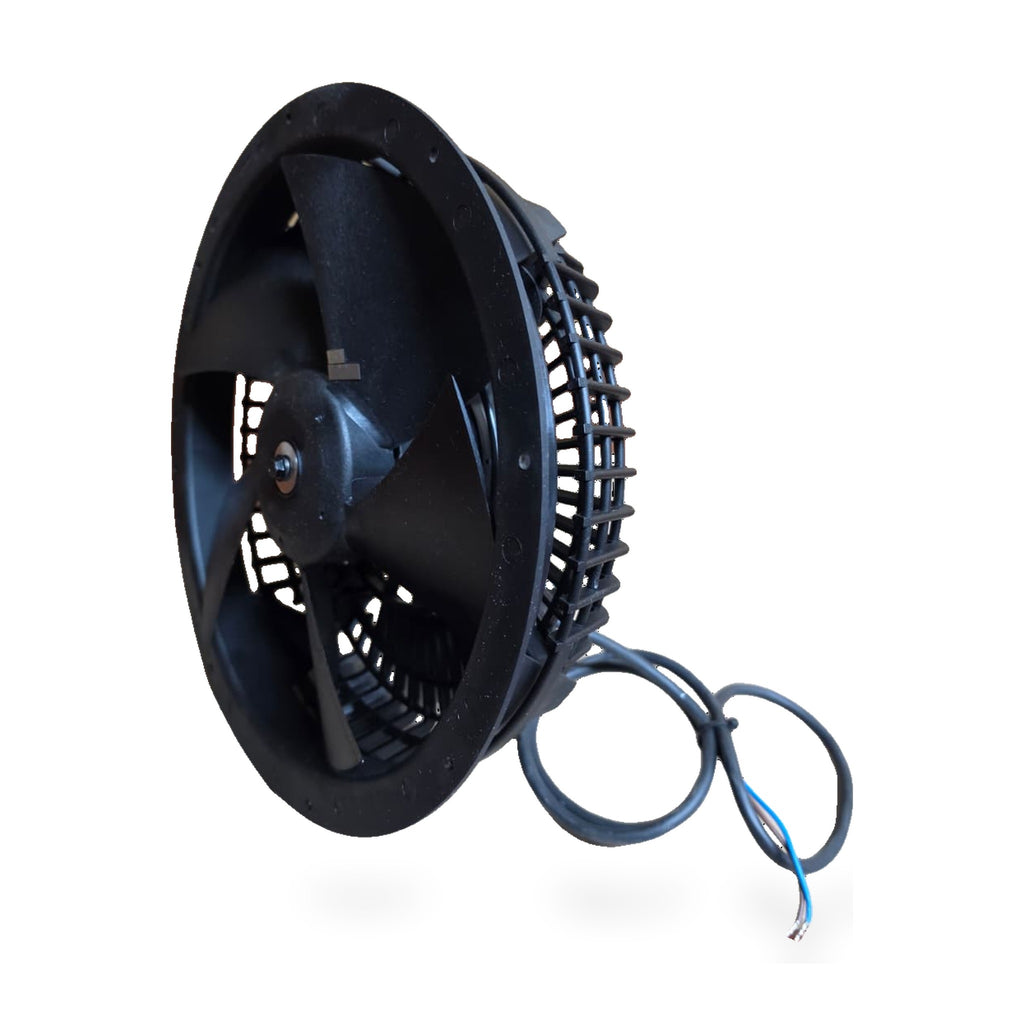

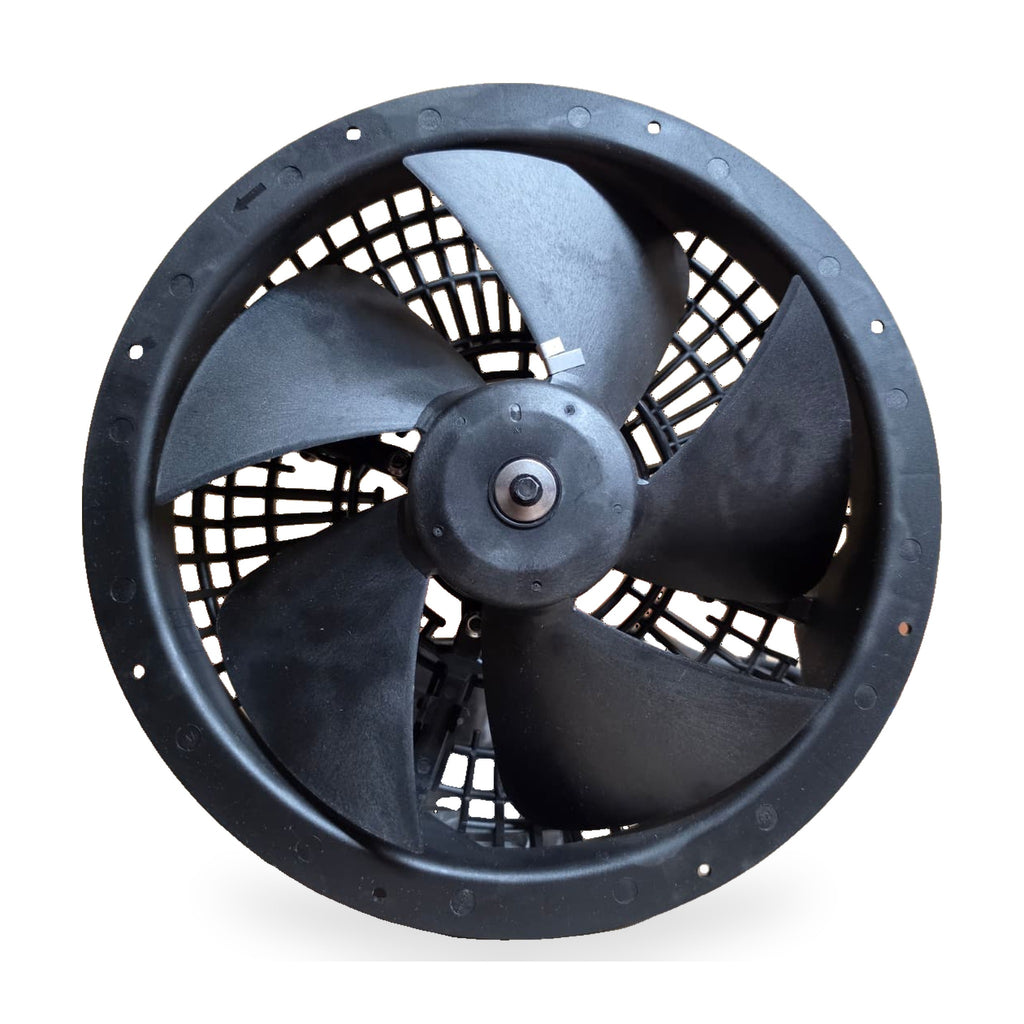

Genuine Delta Electronics AFL28A2LU-00 EC axial fan: brand-new, factory-boxed OEM stock. It is a 280 mm (about 11 in) electronically commutated fan with a 4-blade impeller, a molded mounting ring and a full rear wire guard. Delta builds this AFL28A2LU fan family for commercial refrigeration condensing units and evaporators. It draws only 25 W, far less than an equivalent shaded-pole or PSC fan motor.
Key Features
- EC motor efficiency: 25 W input at 0.34 A, which cuts energy use and heat load compared with conventional fan motors.
- 200–240 VAC, 50/60 Hz: a single-phase input that works on 208 V and 230 V equipment.
- 1600 RPM nominal speed.
- Rated for 60 °C (140 °F) ambient: suitable for hot condenser compartments.

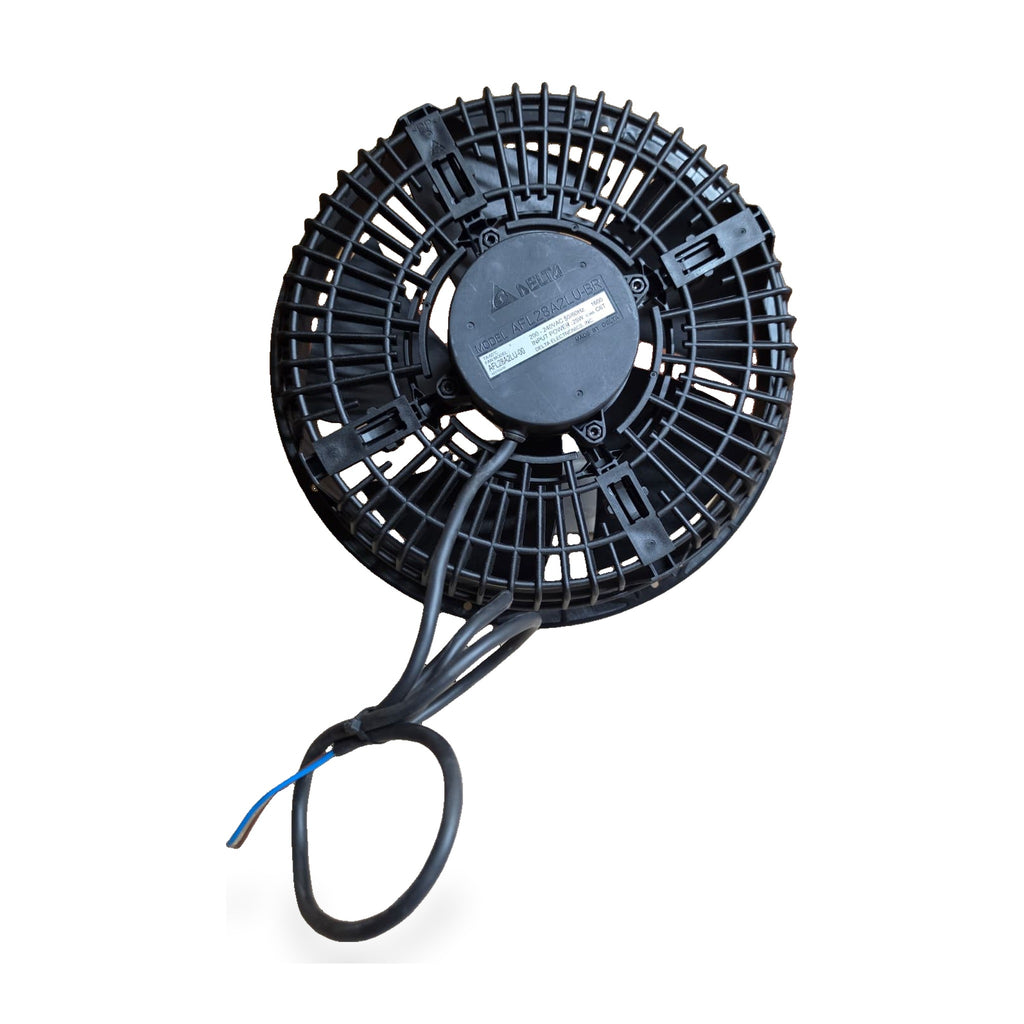

- Full rear wire guard with integrated snap-in mounting clips.

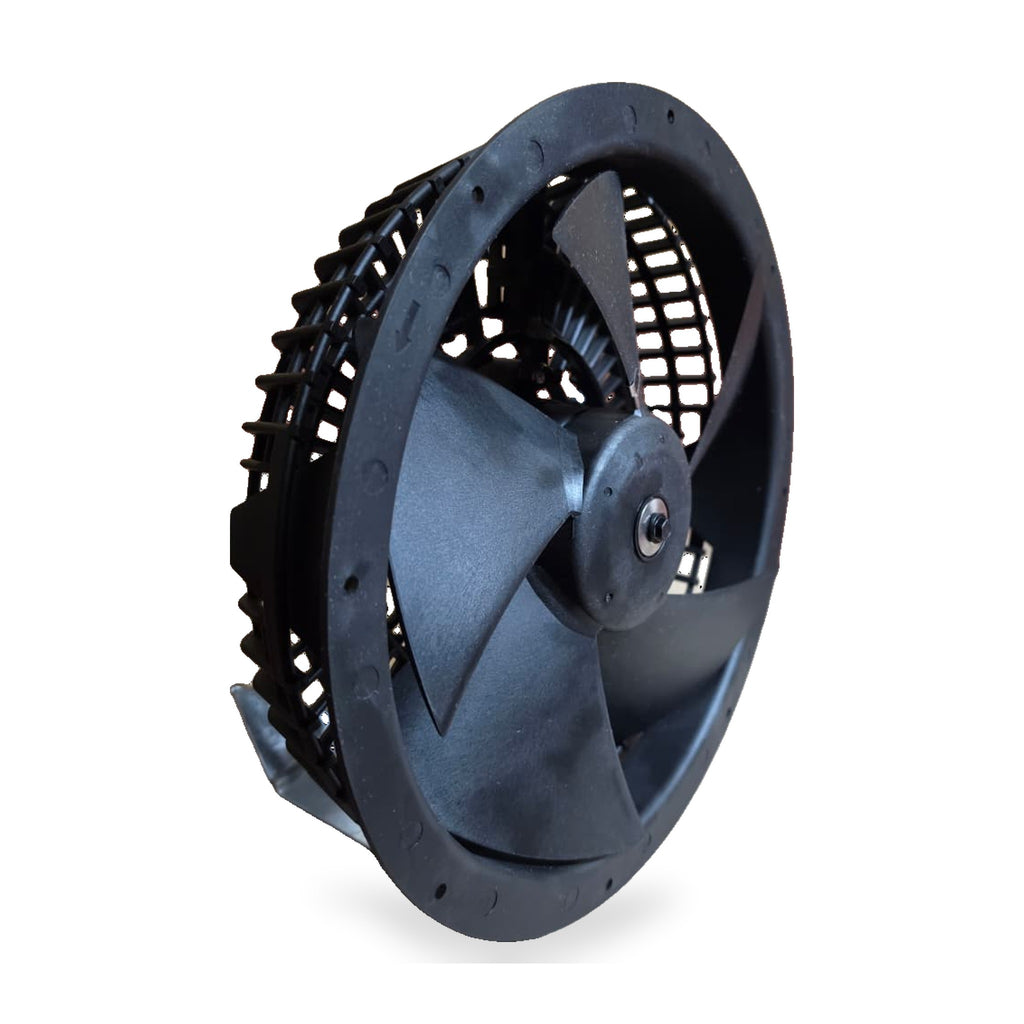

- Mounting ring with a pre-drilled bolt-hole pattern for flat-panel or shroud mounting.
- Long jacketed power cable with stripped leads, ready to wire.

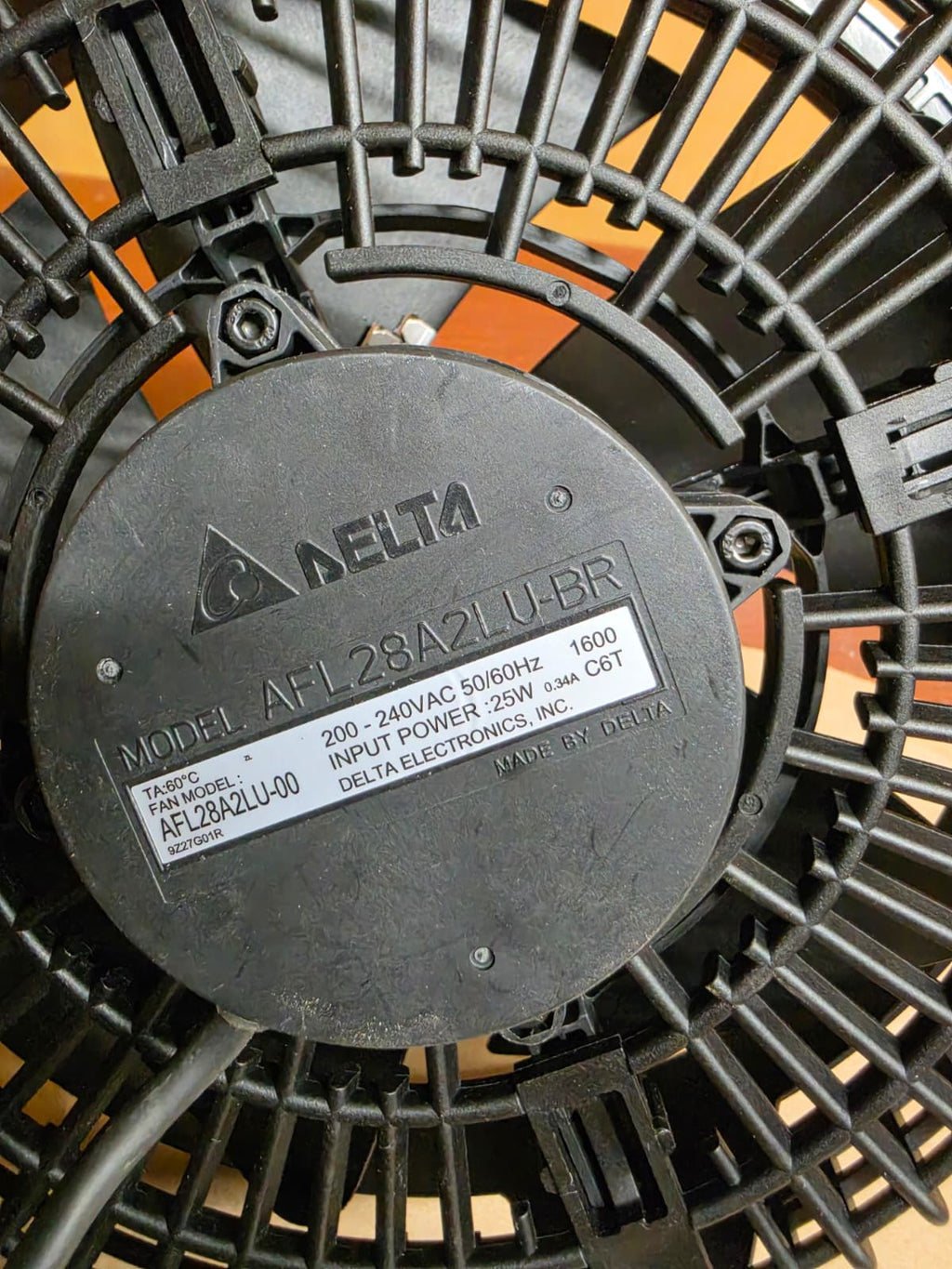

Specifications (from the nameplate)
| Manufacturer | Delta Electronics, Inc. |
| Fan Model | AFL28A2LU-00 (code C6T) |
| Motor Model | AFL28A2LU-BR |
| Factory P/N | AFL28A2LU-00C6T |
| Fan Type | EC axial, 4-blade impeller, ring mount with rear guard |
| Nominal Size | 280 mm (about 11 in) class |
| Input Voltage | 200–240 VAC, 50/60 Hz, single phase |
| Input Power | 25 W |
| Current | 0.34 A |
| Speed | 1600 RPM |
| Max Ambient Temp | 60 °C (140 °F) |
| Leads | Jacketed cable with stripped wire ends |
| Condition | New, never used, in original Delta factory cartons (D/C 9Z28G01R) |
Typical Applications
- Condenser fans for walk-in cooler and freezer condensing units
- Evaporator and unit cooler fans
- Reach-in, merchandiser and display case refrigeration
- HVAC, ventilation and enclosure cooling at 208–240 V
Bulk & Wholesale
These are in stock and ship fast. Distributor lead times on this Delta series run 30+ weeks. Volume pricing is available for service companies, contractors and OEMs. Contact sales@eltcustomcoolers.com for a quote.
This is a 200–240 V fan. Do not connect it to 115 V. Check the dimensions, mounting pattern, airflow direction and wiring against your equipment before you order. Installation should be done by a qualified technician.
