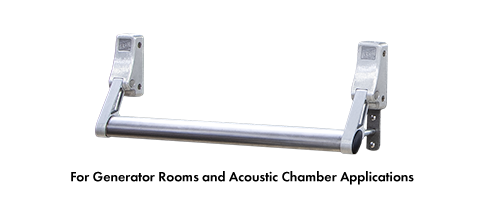

Kason 0488L Panic Bar Inside Release & Latch Assembly – 4" Wall, UL 305 Certified (10488LC400102)

UL 305 and Can/ULC-S132 certified panic device for 4" (101.6 mm) walls, designed for generator enclosures and acoustic chamber doors that use Kason mechanical latches on the exterior. Complete assembly with Kason 0778 latch and strike.

• Hands-free operation — crossbar provides a large contact area for opening the door
• Ergonomic, low-effort design; accommodates left- and right-handed doors
• 304 stainless steel crossbar and mounting brackets, 303 stainless push rod, die-cast aluminum cover and pivot arm
• Temperature rated -40°F to 150°F (-40°C to 65°C)
• Includes Kason 0778 latch and strike; weight 11.59 lb
• Kason part # 10488LC400102 (cross-ref E11914); U.S. Patent 11,193,311

Standard version also available: see the Kason 0488L Panic Bar Inside Release (standard) for typical walk-in cooler and freezer doors.

Related walk-in door hardware:

• Keil / CHG W28-2325X Inside Safety Release
• Keil / CHG W38-1000-C Safety Latch with Cylinder Lock & Strike
