Description

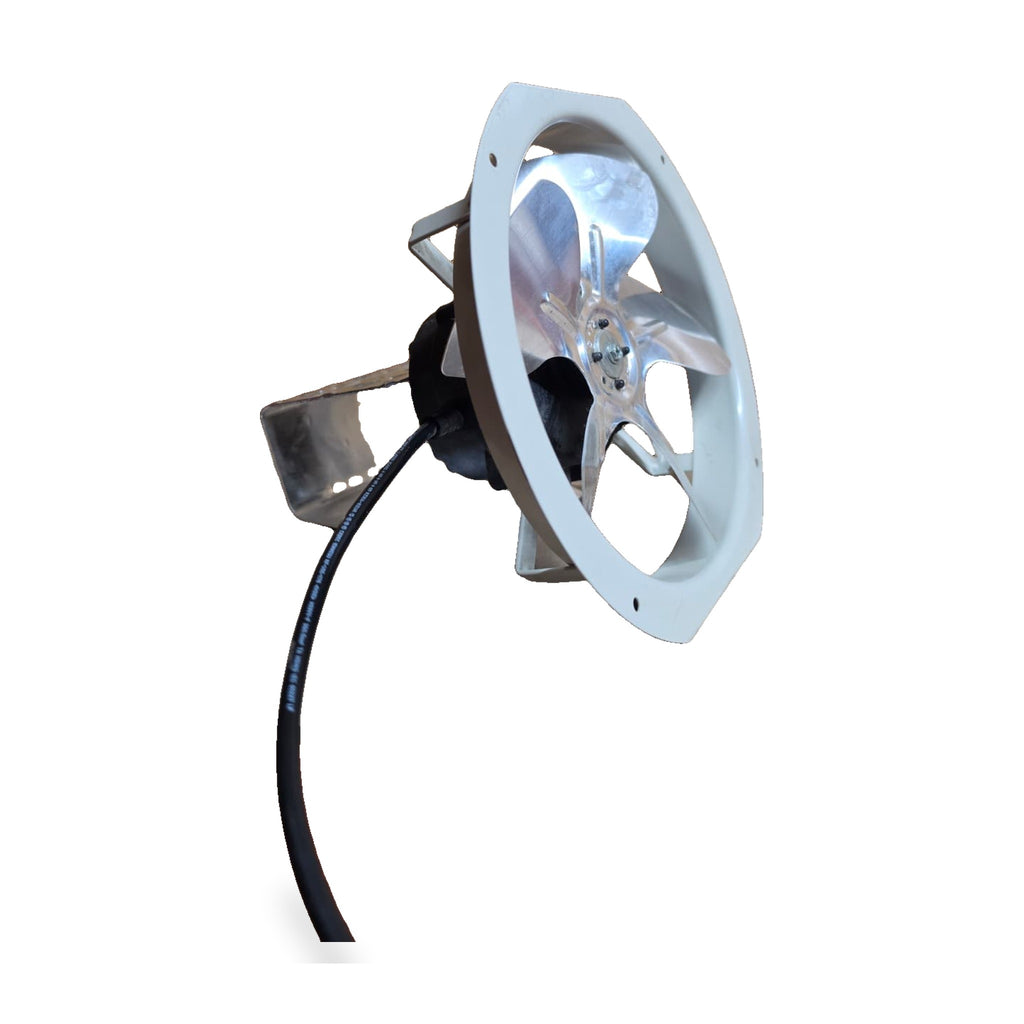

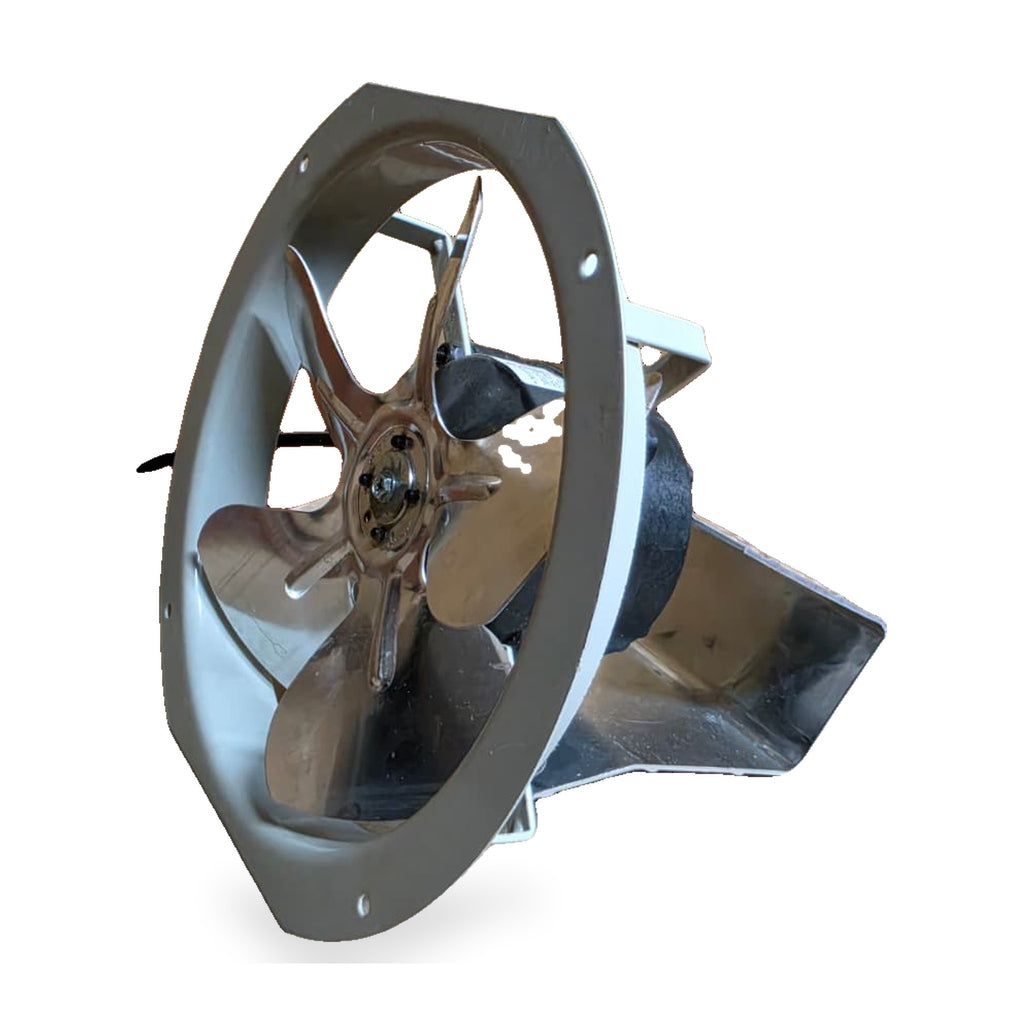

Genuine Master-Bilt OEM part 13-13440: a complete EC (electronically commutated) fan assembly built for Master-Bilt by EC Fans & Drives (an Epec company in New Bedford, MA), model ECD0286-A01. It is new, unused stock and arrives fully assembled with the motor, an aluminum 5-blade fan blade, a venturi mounting ring, a mounting bracket and a pre-terminated power lead, ready to drop in.
Key Features
- Energy-efficient EC motor: uses a fraction of the power of a shaded-pole motor and runs cooler, with less heat load in the box.
- 120 VAC, 50/60 Hz: a direct replacement on standard 115/120 V equipment.
- Complete assembly: motor, blade, venturi ring and bracket all come together, with no separate blade or bracket to source.

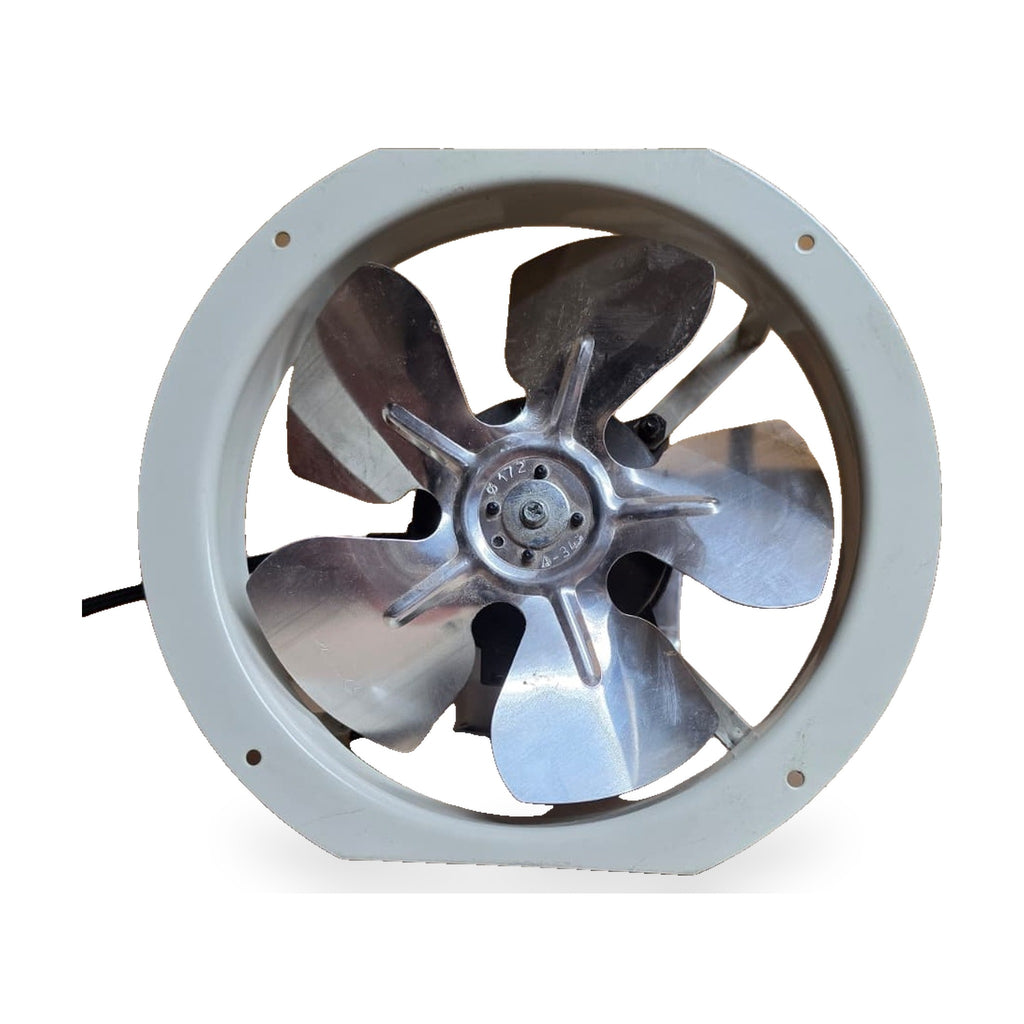

- Aluminum 5-blade fan blade.
- Venturi ring with a pre-drilled mounting-hole pattern.
- Pre-terminated leads: jacketed cable with insulated 1/4" female quick-disconnects.

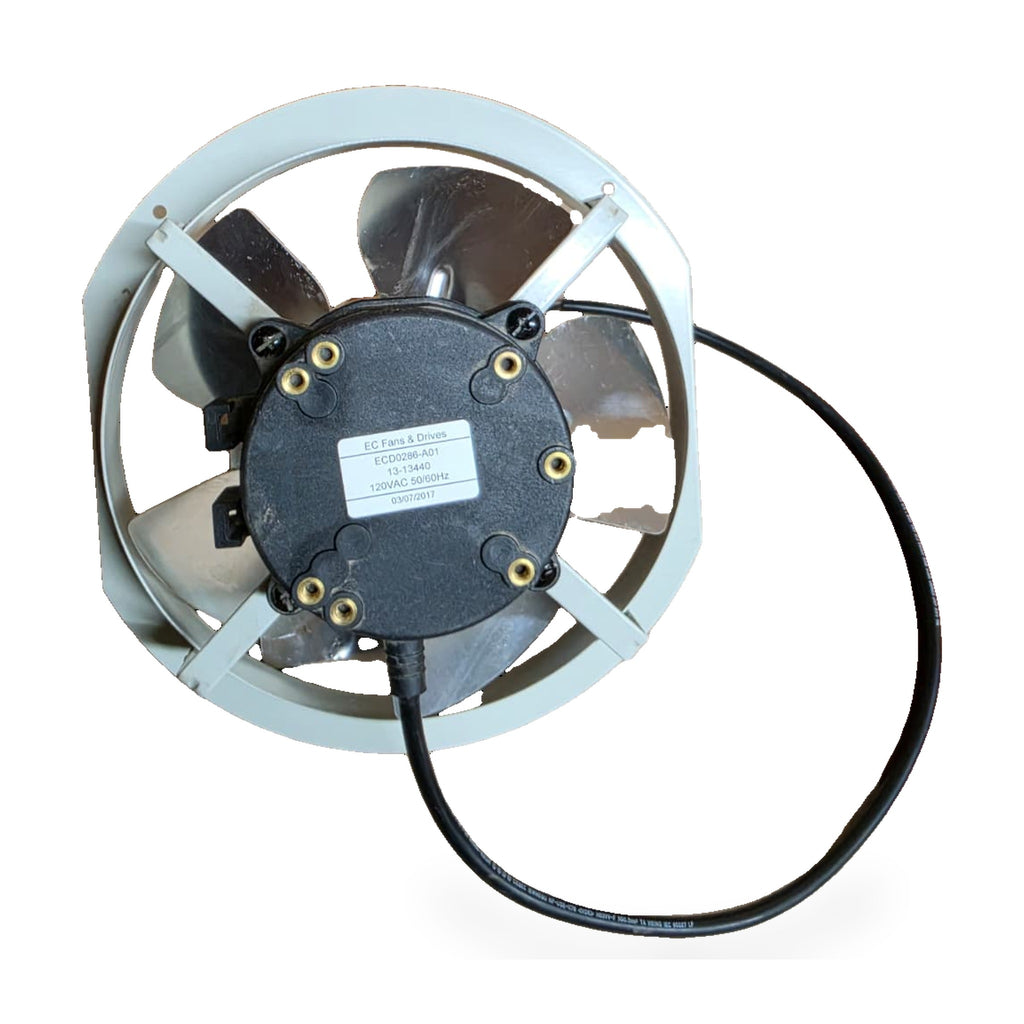

- Brass threaded inserts on the motor end bell for alternate mounting.

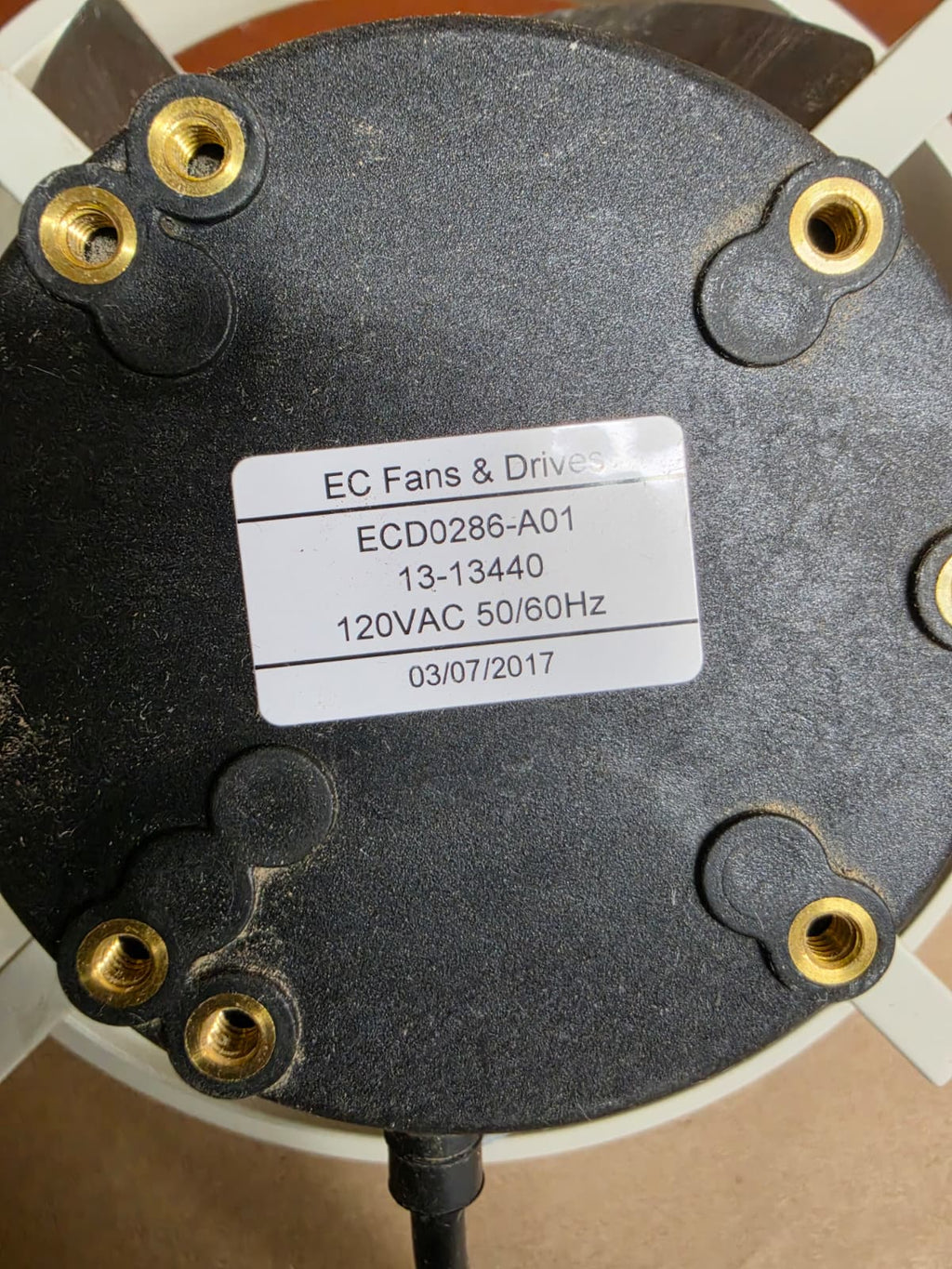

Specifications (from the nameplate)
| OEM | Master-Bilt |
| OEM Part Number | 13-13440 (MB13-13440) |
| Motor Manufacturer | EC Fans & Drives (Epec) |
| Motor Model | ECD0286-A01 |
| Motor Type | EC (electronically commutated) |
| Voltage | 120 VAC, 50/60 Hz, single phase |
| Fan Blade | Aluminum, 5-blade |
| Includes | Motor, blade, venturi mounting ring, bracket, power lead |
| Leads | Jacketed cable with 1/4" insulated female quick-disconnects |
| Condition | New, unused OEM stock |
Typical Applications
- Replacement evaporator fan assembly for Master-Bilt equipment that uses part 13-13440
- Reach-in, display case and walk-in evaporator coils
- An energy-saving EC upgrade for 120 V refrigeration fans
Bulk & Wholesale
These are in stock and ship fast. Volume pricing is available for service companies, contractors and OEMs. Contact sales@eltcustomcoolers.com for a quote.
Check the part number against your equipment's parts list or serial plate before you order. Installation should be done by a qualified technician.
