Description

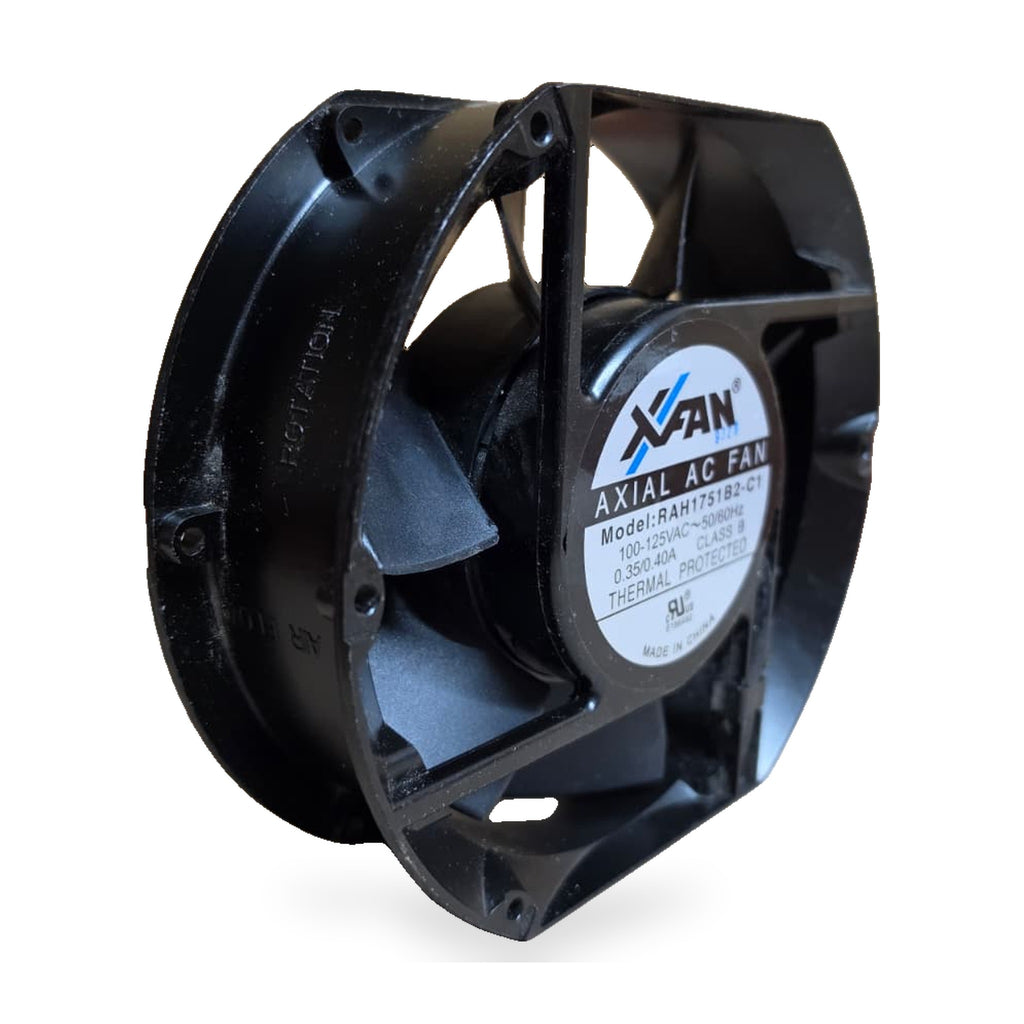

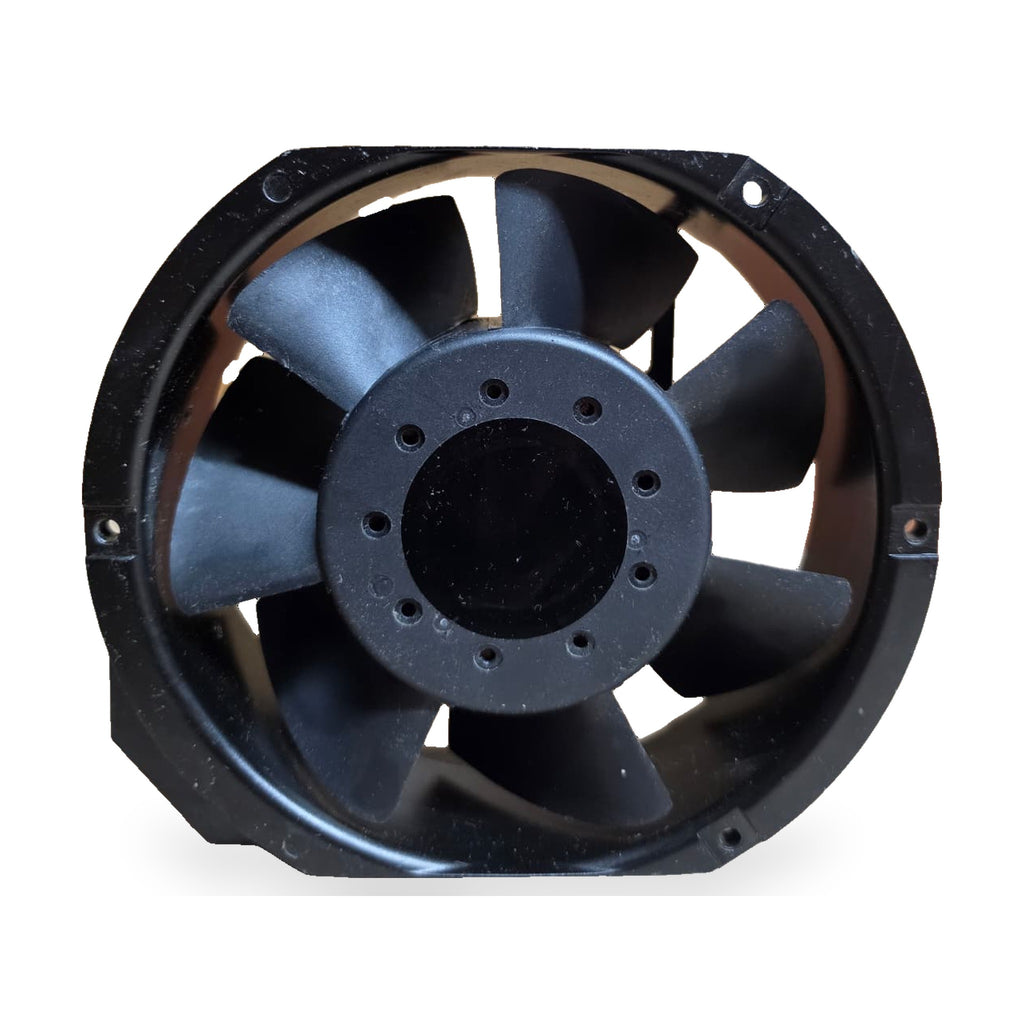

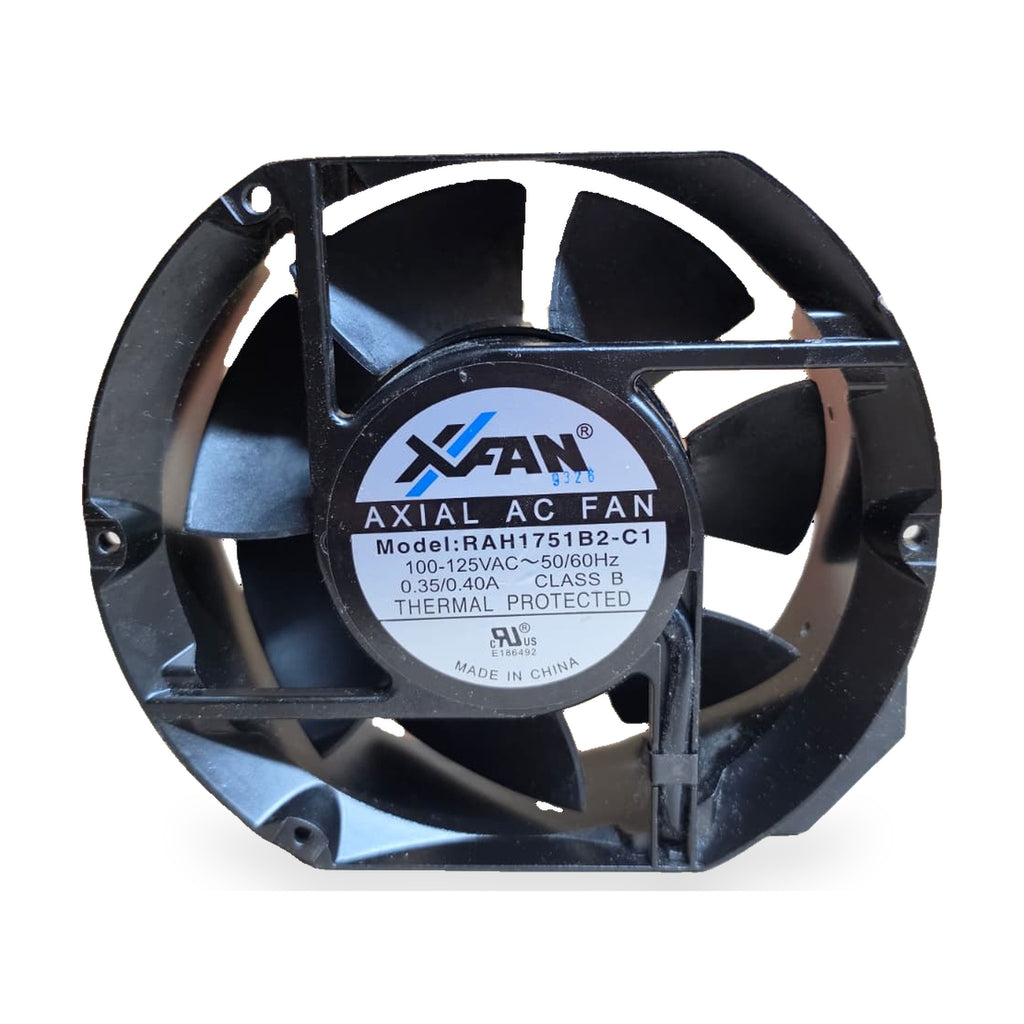

XFAN RAH1751B2-C1 axial AC fan: a heavy-duty 172 x 150 x 51 mm tubeaxial fan with a rugged die-cast aluminum frame, a 7-blade impeller and a ball-bearing motor. It runs directly on 115 V AC with no capacitor or controller needed. Built-in thermal protection and a Class B insulated motor make it a reliable choice for refrigeration condensers, electrical cabinets, enclosures and equipment cooling.
Key Features
- Industry-standard 172 x 150 x 51 mm (6.8 x 5.9 x 2 in) size: drops in for any standard 172 mm oval-frame fan.
- High airflow: the RAH1751 series is rated at roughly 250 CFM.
- 100–125 VAC, 50/60 Hz: wires directly to 115/120 V.
- Ball bearing: long life in any mounting orientation.
- Thermally protected, Class B motor insulation.
- Metal frame with a flanged oval mounting pattern and a ground screw terminal.

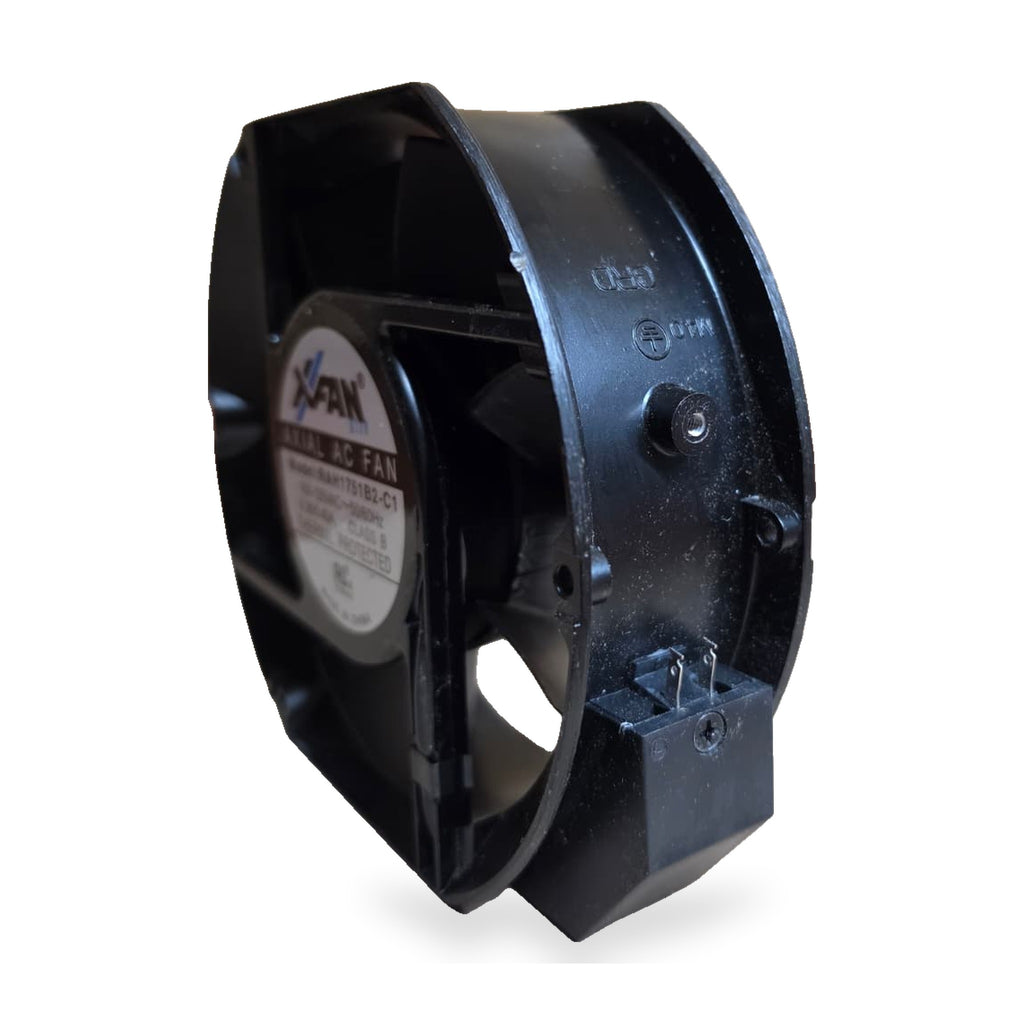

- Built-in terminal block with quick-connect spade terminals.
- UL Recognized (cURus, file E186492).

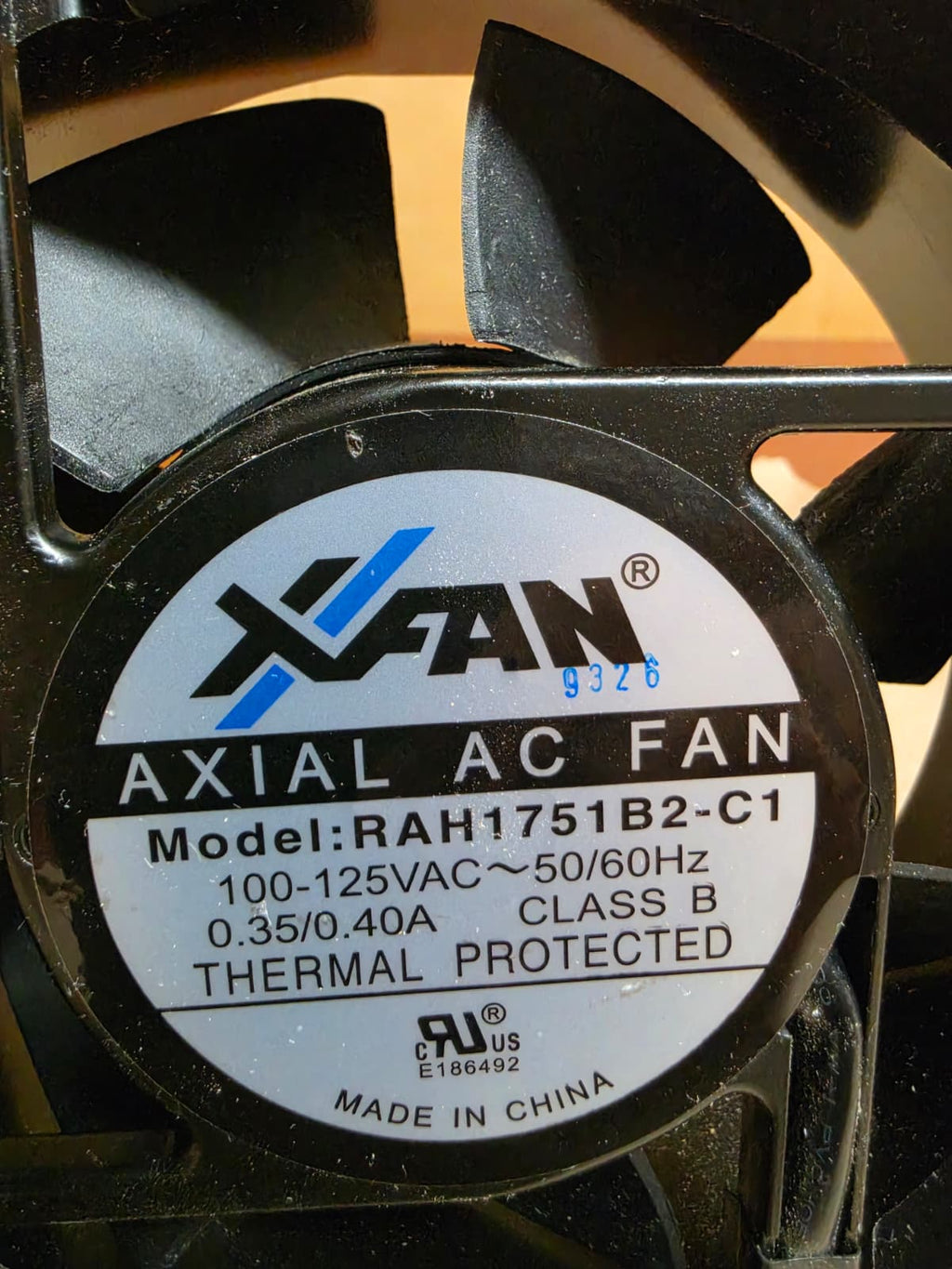

Specifications (from the label)
| Brand | XFAN (Xinruilian) |
| Model | RAH1751B2-C1 |
| Type | Axial AC fan (tubeaxial), 7-blade |
| Dimensions | 172 x 150 x 51 mm (6.8 x 5.9 x 2.0 in) |
| Voltage | 100–125 VAC, 50/60 Hz, single phase |
| Current | 0.35 A (50 Hz) / 0.40 A (60 Hz) |
| Airflow | About 250 CFM (series rating) |
| Bearing | Ball |
| Insulation | Class B |
| Protection | Thermally protected (impedance/thermal) |
| Connection | Terminal block with spade terminals, plus a ground screw |
| Agency | cURus (UL Recognized), file E186492 |
| Condition | New, unused |
Typical Applications
- Refrigeration condenser and evaporator cooling
- Electrical panels, control cabinets and enclosures
- Telecom, server and electronics cooling
- Kiosks, vending machines and industrial equipment
- Direct replacement for other 172 x 150 x 51 mm 115 V AC fans
Bulk & Wholesale
These are in stock and ship fast. Volume pricing is available for OEMs, panel builders and service companies. Contact sales@eltcustomcoolers.com for a quote.
This is a 115 V fan. Do not connect it to 230 V. Check the dimensions and airflow direction against your equipment before you order.
