Freezer Door Hinge Replacement Parts

To change a freezer door hinge, remove the door by lifting it off the existing hinge pins after opening it fully. Unscrew the old hinge plates from the door and frame, align and mount the new hinge using 1/4" flat head screws in the pre-drilled countersunk holes, then rehang the door. Cam-rise hinges like the Kason 1245 allow door removal without full disassembly, making the process faster and easier.

A cam-rise hinge lifts the door slightly as it opens, which reduces friction and gasket wear — especially on uneven floors. This self-closing, self-lubricating design requires minimal effort to operate and is the industry standard for walk-in cooler and freezer doors in commercial food service environments.

A dropped freezer door is typically caused by worn or misaligned hinges. Inspect the hinge cam and mounting hardware for wear or looseness. Tighten any loose screws and check that the hinge is properly seated. If the cam is worn, replacing the hinge with a cam-rise model like the Kason 1245 Series will restore proper door lift and alignment, reducing gasket wear on uneven floors.

Yes, hinges like the Kason 1245 Series feature a reversible design that allows simple manual adjustment for either right- or left-hand door swing. No special tools or complete disassembly are required, making it straightforward to adapt the hinge to your specific door configuration on-site.

The freezer door hinge replacement parts supplied by ELT Custom Coolers meet rigorous industry standards, carrying UL Certified, NSF Approved, and DOE 2017 Compliant certifications. These credentials ensure that your commercial refrigeration operations remain code-compliant and reliable.

Commercial freezer door hinges are typically constructed from high-pressure die-cast zinc for structural strength and durability in cold, humid environments. The cam mechanism is made from self-lubricating nylon, which ensures smooth, trouble-free operation over time without requiring regular lubrication or frequent maintenance.

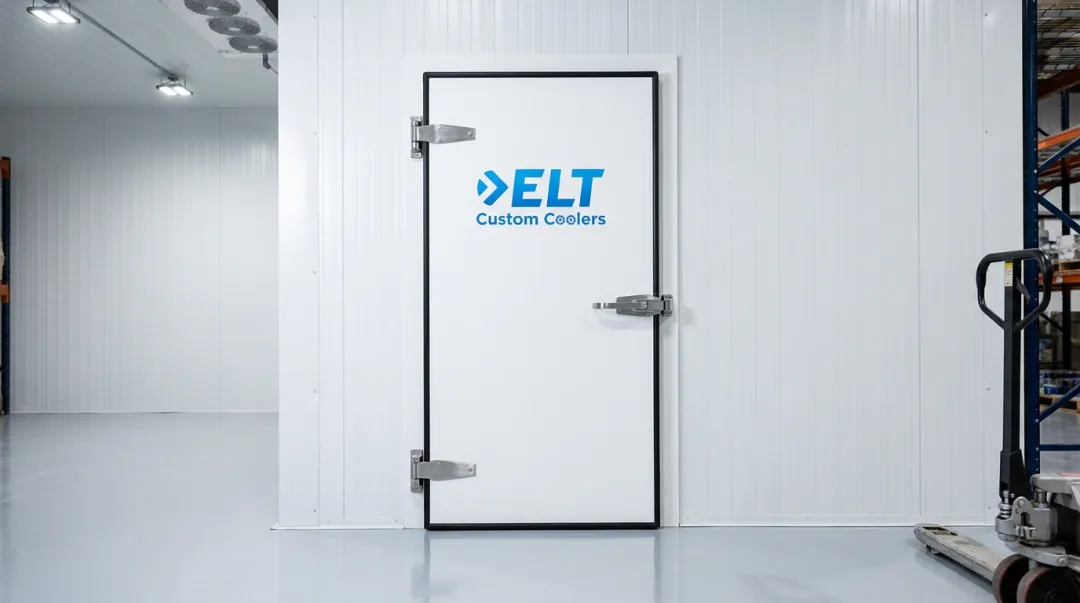

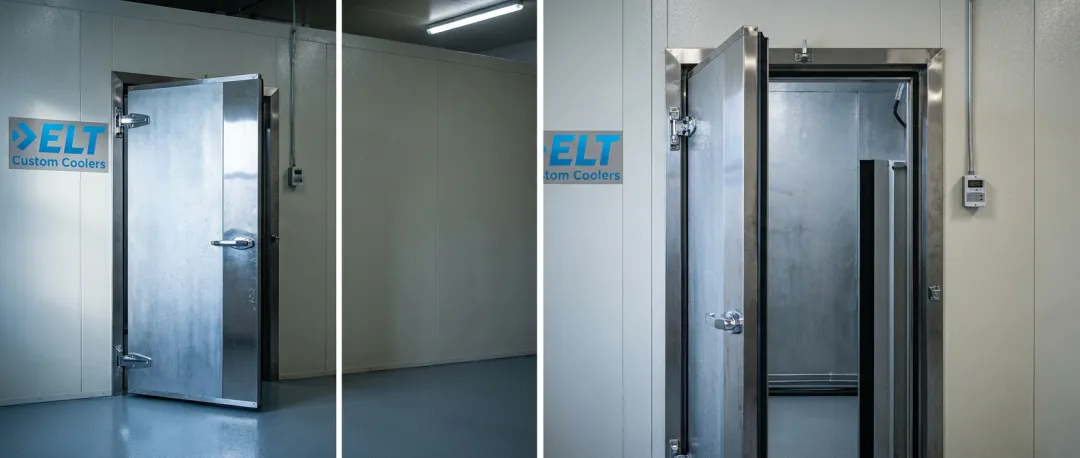

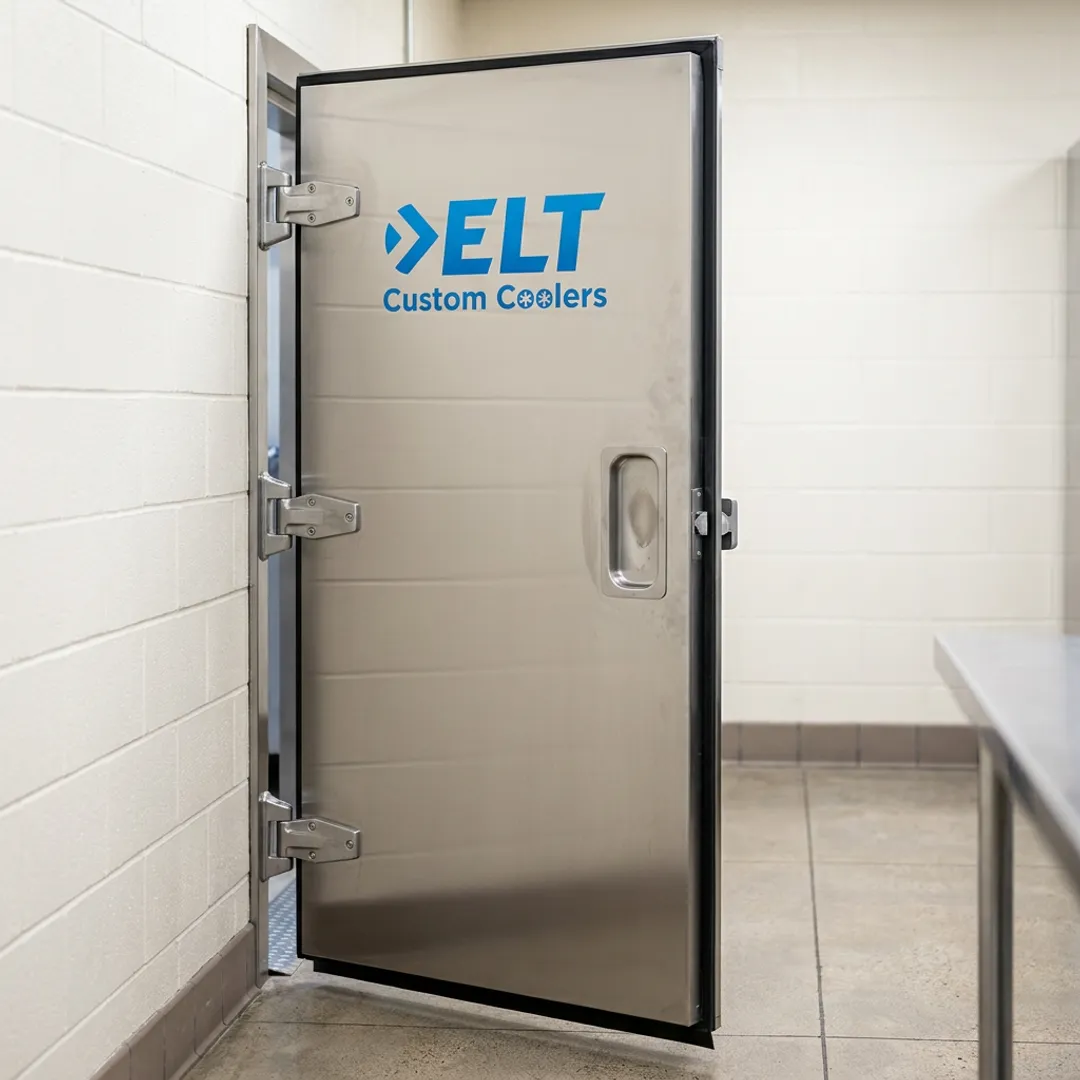

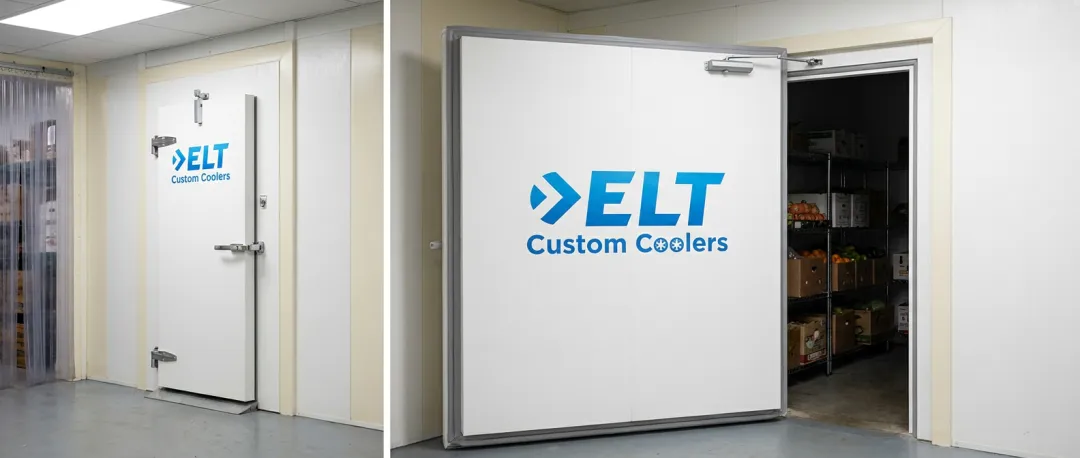

These cam-rise freezer door hinges are designed for a wide range of commercial and industrial applications, including commercial food service (restaurants and kitchens), cold storage and warehousing, retail grocery and supermarkets, and food processing facilities. Their self-closing, heavy-duty design makes them suitable for any high-traffic refrigeration environment.
